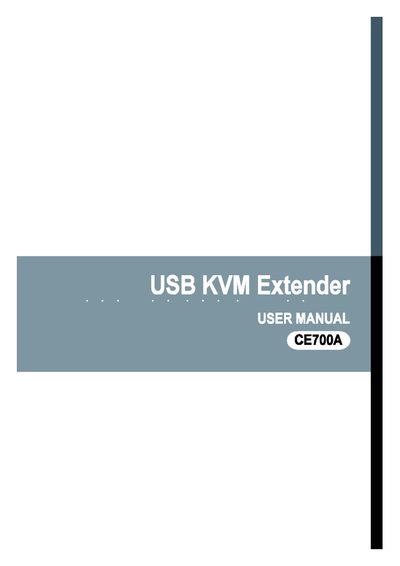

ATEN CE700A USB KVM Extender User Manual
The CE700A is a USB KVM extender that delivers high‑quality video up to 1920×1200 and includes built‑in electrostatic and surge protection. It connects a remote USB control station (keyboard, mouse, monitor) to a computer using a single Cat 5e cable, supporting distances up to 150 m.
The manual covers packaging contents, system requirements, installation steps, wiring diagrams, and a troubleshooting guide. Technical support contacts for international regions and compliance information (FCC, RoHS) are also provided. This manual is written in Chinese.
ATEN CE700A specifications
| Maximum USB extension distance | 150 m |
|---|---|
| Maximum video resolution | 1920 × 1200 @ 60 Hz |
| Supported video standards | VGA, SVGA, SXGA, UXGA, WUXGA, Multisync |
| Power consumption | 2.31 W at 5.3 V |
| ESD protection | 8 kV/15 kV |
| Surge protection | 2 kV |
| Dimensions | 12.50 × 8.15 × 2.50 cm |
| Operating temperature range | 0‑50 °C |
All ATEN CE700A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum USB extension distance supported by the CE700A?
The CE700A can extend USB signals up to 150 meters.
What is the maximum supported cable length for the CE700A?
The extender can operate over a distance of up to 150 meters when a Cat 5e cable is used.
Does the CE700A provide video over USB without additional software?
Yes, the device requires no software; simply connect the cable between the near‑end and far‑end units.
