Key facts
- Brand
- ATEN
- Model
- CV-131
- Category
- Other Computer Accessories
- Documents
- 3
- Languages
- EN · ZH
- Last added
- 2012-04-12
Start here

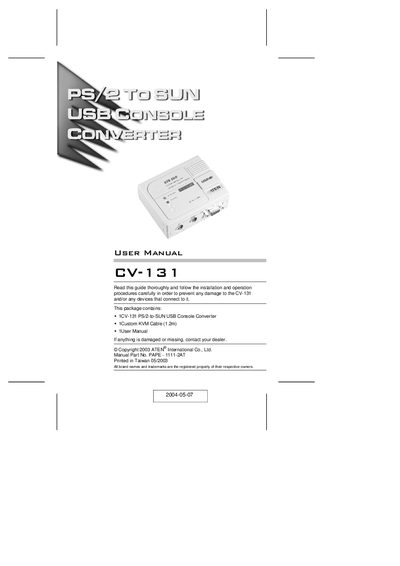

ATEN CV-131 User Manual
The CV-131 is a PS/2‑to‑SUN interface converter that translates PS/2 keyboard, mouse, and video signals to Sun‑compatible signals, allowing a USB‑enabled Sun workstation to be controlled from an IBM‑compatible KVM console. It supports multiple keyboard languages, hotkey configuration, and can be powered directly from the USB bus.
The manual covers hardware components, wiring diagrams, step‑by‑step installation, system requirements, and troubleshooting tips, helping users integrate Sun workstations into existing PS/2 KVM networks or extend them up to 150 m using ATEN console extender products.
ATEN CV-131 specifications
| Connector to SPHD‑15 switch (CV-131A) | 1x SPHD‑15 |
|---|---|
| Connector to Sun station | 1x HDB‑15 |
| USB port | 1x USB Type A |
| LED indicator | 1 Power |
| Supported video resolutions | 1152 × 900; 1280 × 1024; 1600 × 1200 |
| Operating temperature | 0 – 50 °C |
| Cable length | 1.8 m |
| Housing dimensions | 10.65 × 4.2 × 2.31 cm |
| Weight | 0.2 kg (CV-131A) / 0.24 kg (CV-131B) |
Source: ATEN CV-131A/CV-131B User Manual
All ATEN CV-131 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I select the keyboard language layout?
Press and hold the Ctrl key, press F12, then press the hotkey for the desired language (3 for American English, 0 for French, 1 for Japanese).
How can I reset the USB connection?
You can either unplug and replug the USB cable or use the USB reset hotkey combination (Ctrl + F12, F5).
What video resolutions are supported?
Resolutions of 1280 × 1024 or 1024 × 768 are supported; 1152 × 900 is not supported.
From: ATEN CV-131 User Manual
Does the CV-131 require an external power supply?
No, the CV-131 is bus powered and does not need an external power adapter.
From: ATEN CV-131 User Manual
How can I change the keyboard language layout?
Press and hold the Qrl key, then press F12 and the corresponding hot‑key (e.g., Ctrl+F12,3 for US English) and finally release the Qrl key; the system must be rebooted after changing the layout.
How do I reset the USB connection?
Use the hot‑key combination Ctrl + F12, then F5S to perform a USB reset.
