Start here

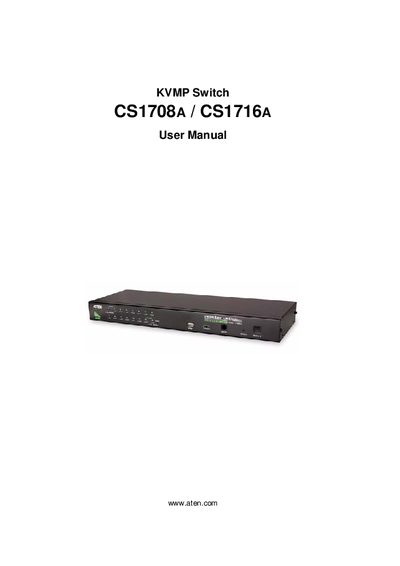

ATEN CS1708A/CS1716A KVM Switch User Manual
This manual covers everything you need to set up and use the ATEN CS1708A/CS1716A KVM Switch. It includes package contents, hardware setup steps, basic and advanced operation, on‑screen display (OSD) navigation, keyboard emulation tables, and firmware upgrade procedures. Safety information, FCC compliance details, and warranty terms are also provided.
The document is organized into chapters that introduce the system, guide you through rack mounting, cable connections, daisy‑chain installations, and explain hot‑key functions, port selection, and troubleshooting. Appendices contain technical specifications, connection tables, and support contact information.
ATEN CS-1708 specifications
| Maximum simultaneous users | 32 |
|---|---|
| Maximum chained devices | 128 (CS1708i) / 256 (CS1716i) |
| Local video resolution | 2048 × 1536 DDC2B |
| Remote video resolution | 1600 × 1200 @ 60 Hz, 24‑bit color |
| Power consumption | 5.3 V, 95 W (CS1708i) / 5.3 V, 11 W (CS1716i) |
| Operating temperature | 0 °C to 50 °C |
| Weight | 2.81 kg (CS1708i) / 3.00 kg (CS1716i) |
| Dimensions (L×W×H) | 43.30 × 16.00 × 4.40 cm |
Source: ATEN CS1708i/CS1716i User Manual
All ATEN CS-1708 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I register my ATEN KVM switch online?
Register the product at ATEN's support site: http://support.aten.com for international users or http://aten-usa.com for North America.
What FCC classification does the CS1708A/CS1716A have?
The device is classified as an FCC Class A product.
What is included in the package?
The package contains one CS-1708 or CS-1716 KVM switch, two custom KVM cable sets, a firmware upgrade cable, a power adapter, a rack‑mount kit, and the user manual.
Where can I register my ATEN product online?
You can register internationally at http://support.aten.com or in North America at http://www.aten-usa.com/product_registration.
How many users can log in at the same time?
Up to 32 users can log in simultaneously on a single channel.
Can the KVM switches be daisy‑chained to expand the system?
Yes, they can be chained to up to 128 units for the CS1708i model or 256 units for the CS1716i model.
