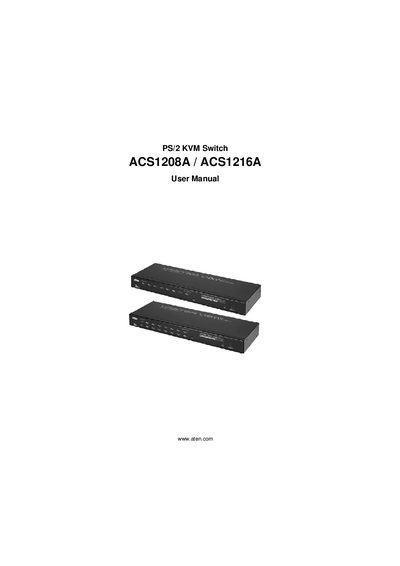

ATEN ACS1208A/ACS1216A KVM Switch User Manual
This manual covers all aspects of the ATEN ACS1208A/ACS1216A KVM switch series, including hardware setup, hotkey and OSD operation, firmware upgrades, and technical specifications. It guides users through single‑stage installation, rack mounting, daisy‑chaining, and hot‑plugging procedures.
The document also includes safety information, FCC and RoHS compliance statements, troubleshooting tips, and contact details for technical support. Detailed tables list connector types, power requirements, and environmental limits for both the ACS1208A (8‑port) and ACS1216A (16‑port) models.
ATEN ACS1208A specifications
| Maximum computers (ACS1208A) | 8 |
|---|---|
| Maximum computers via daisy‑chain | 512 |
| Power consumption (ACS1208A) | 7.5 W (max.) |
| Operating temperature | 0–50 °C |
| Dimensions (L × W × H) | 483 × 517 × 45 mm (19" 1U) |
| Weight (ACS1208A) | 2.73 kg |
| Video connector type | HDB‑15 |
All ATEN ACS1208A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many computers can the ACS1208A control?
The ACS1208A can directly connect to up to 8 computers.
What is the maximum number of computers that can be connected via daisy‑chain?
Up to 512 computers can be controlled through daisy‑chaining.
