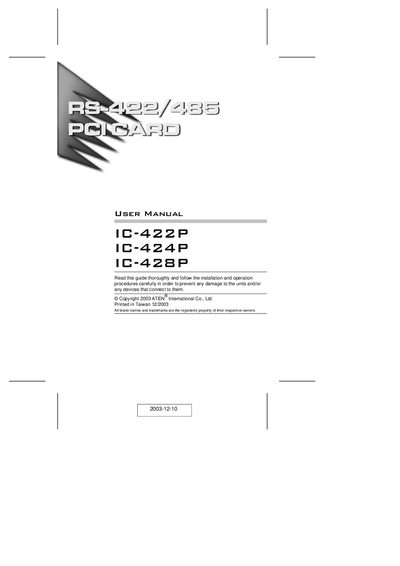

ATEN IC-422P/IC-424P/IC-428P User Manual

ATEN IC-422P/IC-424P/IC-428P User Manual

User Manual 16 pages · 458 KB · EN

The ATEN IC-422P, IC-424P, and IC-428P are RS-422/485 serial PCI cards offering 2, 4, and 8 ports respectively. Each port includes bidirectional surge protection up to 1500 V or 600 W, 32 Bytes FIFO storage, and supports data rates up to 960 Kbps. The cards are plug‑and‑play and work with Windows 3.1/95/98/NT/2000/XP, DOS, and Linux operating systems.

Installation is straightforward: power off the computer, insert the card into an available PCI slot, connect the appropriate RJ‑45 to DB‑25/DB‑9 cables (for the 424P and 428P), attach peripheral devices, and power the system back on. The manual also provides pin assignments, compatibility information, and troubleshooting steps such as trying a different slot or cleaning contacts if boot errors occur.

Read online

ATEN IC428P specifications

Serial ports8 independent RS-422 or RS-485 serial ports
Optical isolation2.5KV (IC-428PI only)
Bus interface64-bit & 32-bit PCI Bus - 3.3V & 5V connector keys
Connector1 DB78 Female port to 8 DB9/25 Male
FIFO32 byte hardware FIFO, 128Kbyte software FIFO
Baud rateUp to 921.6 Kbps
Data bits4, 5, 6, 7, 8
Stop bits1, 1.5, 2
Parityeven, odd, none, mark, space
Flow controlNone, Xon/Xoff, Hardware
Supported OSMicrosoft DOS, Windows 3.x/9x/Me/NT/2000/XP/2003
SignalsRS-422 TxD+/-, RxD+/-, RTS+/-, CTS+/-, GND

Source: ATEN IC-428P/IC-428PI PCI 32-bit RS-422/485 Multi-Port Adapter User Manual
