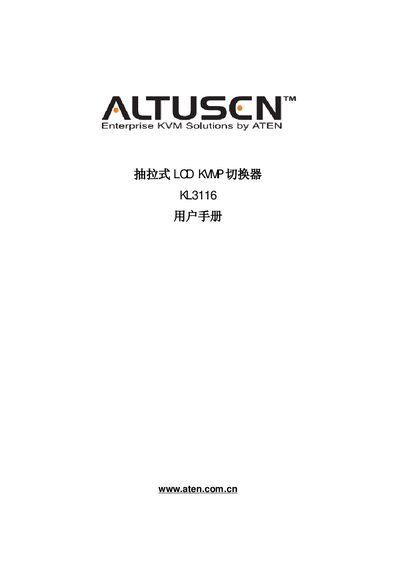

ALTUSEN KL3116 LCD KVM Switch User Manual
This manual covers all aspects of the ALTUSEN KL3116 LCD KVM switch, including safety guidelines, rack‑mount installation, and detailed hardware specifications. It explains how to connect up to 512 computers, configure the LCD OSD, and use hot‑key and keyboard emulation features.
Additional sections guide users through firmware updates, port selection, hot‑plug operations, and common troubleshooting steps, with warranty information and contact details for technical support. This manual is written in Chinese.
ATEN Altusen KL3116 specifications
| Input Power | 100–240 V AC, 50/60 Hz, 1 A |
|---|---|
| Power Consumption | 35.2 W @ 120 V, 41.8 W @ 230 V |
| Display Resolution | 1280 × 1024 @ 75 Hz |
| Operating Temperature | 0 °C – 40 °C |
| Weight | 17.50 kg |
All ATEN Altusen KL3116 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many computers can be connected to the KL3116?
The KL3116 can connect up to 512 computers using daisy‑chain (菊式串联).
What warranty does ALTUSEN provide for the KL3116?
ALTUSEN offers a one‑year warranty covering product quality and workmanship.
How many computers can the KL3116/KL3116T control directly?
It can control up to 16 computers directly.
What is the maximum number of computers that can be connected via daisy‑chain?
Up to 512 computers can be connected using daisy‑chain (菊式串联).
