Key facts
- Brand
- ATEN
- Model
- KM0216
- Documents
- 3
- Languages
- ZH · JA
- Last added
- 2012-03-21
Start here

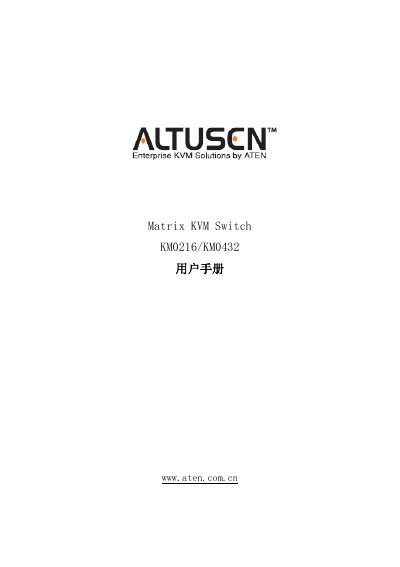

ALTUSEN KM0216/KM0432 Matrix KVM Switch User Manual
This manual provides detailed instructions for installing, configuring and operating the ALTUSEN KM0216/KM0432 matrix KVM switch. It includes safety guidelines, rack‑mount procedures, cable specifications and troubleshooting steps.
The document also describes firmware update procedures, OSD functions, hot‑key operations and supported operating systems, helping users to fully utilize the switch's features in multi‑layer daisy‑chain and stack configurations. This manual is written in Chinese.
ATEN Altusen KM0216 specifications
| Maximum host connections (KM0216) | 128 (via 8‑layer daisy chain) |
|---|---|
| Maximum host connections (KM0432) | 256 (via 8‑layer daisy chain) |
| Maximum control ports (KM0216) | 16 (via daisy chain) |
| KVM ports (KM0216) | 16 RJ‑45 |
| KVM ports (KM0432) | 32 RJ‑45 |
| Power connector | 3‑prong AC plug |
| Operating temperature | 0‑50 °C |
| Storage temperature | -20‑60 °C |
| Weight | 4.2 kg (KM0216) / 4.6 kg (KM0432) |
| Dimensions | 43.808 × 28.4 × 4.4 mm |
All ATEN Altusen KM0216 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How many KVM ports does the KM0432 model provide?
The KM0432 model provides 32 RJ‑45 KVM ports.
What is the operating temperature range for the switch?
The device operates between 0 °C and 50 °C.
How many devices can be connected to an extension cord when using the KM216/KM432?
The total current of all devices on the extension cord must not exceed the cord’s current rating and must stay below 15 A.
