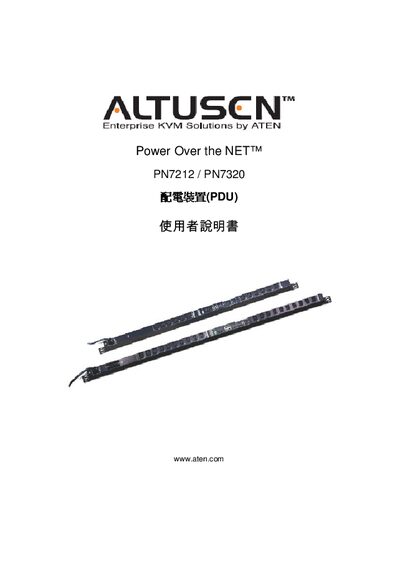

The ATEN PN7212 / PN7320 Power Over the NET PDU User Manual provides installation, configuration, and management instructions for the device.
The Power Over the NET™ PN7212 and PN7320 are rack‑mountable Power Distribution Units (PDUs) that deliver AC power and network connectivity to connected equipment. They support a range of outlet types and include monitoring and control features.
This manual covers safety guidelines, hardware installation, rack mounting, network setup, user and group management, firmware upgrades, logging, and troubleshooting. Detailed specifications, wiring diagrams, and configuration steps are provided for both models. This manual is written in Chinese.
| Maximum direct outlets (PN7212) | 192 |
|---|---|
| Maximum direct outlets (PN7320) | 320 |
| Output rating per port (PN7212) | 100‑120 V, 12 A |
| Output rating per port (PN7320) | 200‑240 V, 10 A |
| Dimensions (L×W×H) | 6.42 × 5.46 × 134.00 mm |
| Weight (PN7212) | 4.49 kg |
| Operating temperature | 0 °C – 50 °C |
| Storage temperature | -20 °C – 60 °C |
| Power consumption (standby) | 5 V, 20 mW |
The PN7212 can support up to 192 direct outlets when daisy‑chained.
The PN7212 accepts an input of 100‑120 V, 50/60 Hz, up to 16 A (UL rating).
The device operates from 0 °C to 50 °C, can be stored from –20 °C to 60 °C, and works at 0‑80 % RH non‑condensing.
Standby power consumption is 5 V at 20 mW.
