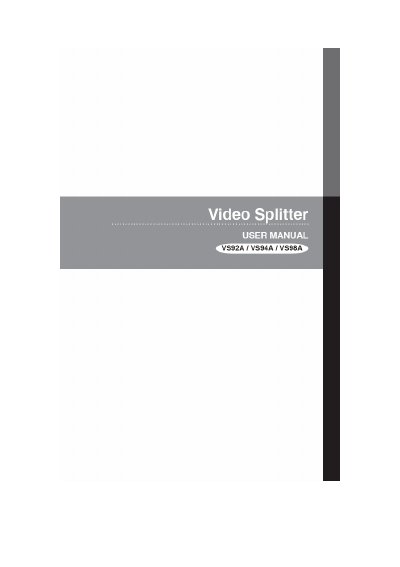

ATEN VS92A/VS94A/VS98A Video Splitter User Manual
The ATEN VS92A/VS94A/VS98A series are video splitters that duplicate an analog video source to 2, 4 or 8 outputs respectively, with signal‑boosting for long‑distance transmission up to 65 m. The devices support VGA, SVGA, XGA and Multisync signals and include DDC/DDC2/DDC2B functionality on port 1.
The manual provides packaging details, part identification, wiring diagrams, specifications, and safety notices. It also lists online registration and support URLs for international, North‑American and Chinese regions. This manual is written in Chinese.
ATEN VS92A specifications
| Video input connector | 1 × HDB15 (male) |
|---|---|
| Video output connector | HDB15 (female) |
| Bandwidth (‑3 dB) | 250 MHz (VS92A/VS94A), 200 MHz (VS98A) |
| Maximum resolution @60 Hz | 1920 × 1440 (VS92A), 1600 × 1200 (VS94A) |
| Power consumption (max) | 0.85 W (VS92A), 2.43 W (VS94A), 3.6 W (VS98A) |
| Operating temperature | 5 °C – 40 °C |
| Weight | 0.32 kg (VS92A), 0.45 kg (VS94A), 0.53 kg (VS98A) |
| Dimensions (L × W × H) | 13.0 cm × 7.5 cm × 4.5 cm (VS92A), 20.0 cm × 7.5 cm × 4.5 cm (VS94A) |
| Supported video signal types | VGA, SVGA, XGA, Multisync |
All ATEN VS92A documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum video transmission distance?
The splitter can transmit video signals up to 65 meters (213 ft).
What video signal types are supported?
It supports VGA, SVGA, XGA and Multisync signals.
How many video outputs does each model provide?
The VS92A provides 2 outputs, the VS94A provides 4 outputs, and the VS98A provides 8 outputs.
What is the maximum cable distance the splitters support?
The splitters can transmit video up to 65 m (213 ft) from the device to the monitor.
