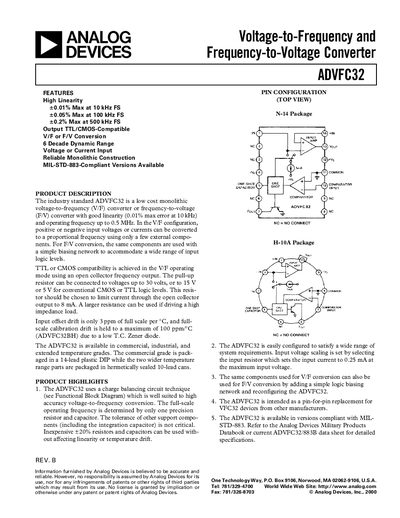

Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
The ADVFC32 from Analog Devices converts voltage to frequency (V/F) or frequency to voltage (F/V) with very high linearity (0.01 % max error at 10 kHz) and a full‑scale frequency range up to 0.5 MHz. It supports both TTL and CMOS logic levels, offers a 6‑decade dynamic range, and is available in commercial, industrial, and extended‑temperature grades.
The device is supplied in a 14‑lead plastic DIP (N‑14) and a hermetically sealed 10‑lead TO‑100 package. Detailed specifications include input voltage ranges, output logic levels, power‑supply requirements, temperature ranges, and ESD sensitivity. Application notes describe V/F and F/V configurations, bipolar operation, high‑noise‑immunity data links, and microprocessor‑driven A/D conversion.
Analog Devices ADVFC32 specifications
| Nonlinearity at 10 kHz | ±0.01 % |
|---|---|
| Input Offset Drift | 3 ppm/°C |
| Pull‑up Voltage Range | 0 – 30 V |
| Operating Temperature Range | -25 °C to +85 °C |
Source: Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
All Analog Devices ADVFC32 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How much current can the open‑collector output sink?
The output can sink up to 8 mA.
From: Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
What is the input offset drift of the ADVFC32?
The input offset drift is only 3 ppm per °C.
From: Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
What is the maximum voltage that can be applied to the pull‑up resistor?
The pull‑up resistor may be connected to voltages up to 30 V.
From: Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
How many decades of dynamic range does the ADVFC32 provide?
The device offers a 6‑decade dynamic range.
From: Analog Devices ADVFC32 Voltage-to-Frequency and Frequency-to-Voltage Converter Datasheet
