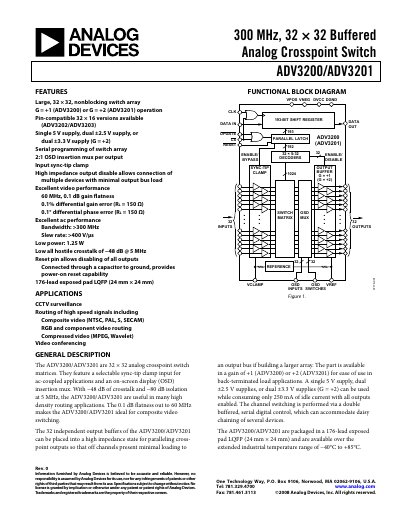

Analog Devices ADV3200/ADV3201 Product Handbook
The ADV3200 and ADV3201 are 32 × 32 buffered analog crosspoint switch matrices designed for high‑speed video routing and signal handling. They offer selectable gain (+1 or +2), a single 5 V or dual ±2.5 V/±3.3 V supply options, and low power consumption of 1.25 W. Key features include a non‑blocking switch array, on‑screen‑display (OSD) insertion mux, sync‑tip clamp, and excellent video performance with 0.1 dB gain flatness to 60 MHz.
The document lists detailed specifications such as bandwidth >300 MHz, slew rate >400 V/µs, crosstalk –48 dB at 5 MHz, and operating temperature range –40 °C to +85 °C. It also provides pin‑out tables, timing diagrams for serial programming, power dissipation data, and application notes for CCTV, composite video, and high‑speed signal routing.
Analog Devices ADV3200 specifications
| Bandwidth | >300 MHz |
|---|---|
| Slew Rate | >400 V/µs |
| Power Consumption (Low Power) | 1.25 W |
| Operating Temperature Range | –40 °C to +85 °C |
| Input Capacitance | 3 pF |
| Output Impedance (Enabled) | 0.15 Ω |
| Crosstalk (Hostile, 5 MHz) | –48 dB |
| Gain Flatness | 0.1 dB at 60 MHz |
All Analog Devices ADV3200 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltages can the ADV3200/ADV3201 use?
They can be powered from a single 5 V supply, dual ±2.5 V supplies, or dual ±3.3 V supplies (for the ADV3201 gain‑+2 version).
What is the crosstalk performance of the device?
The device achieves –48 dB hostile crosstalk at 5 MHz with a 150 Ω load.
What is the maximum power dissipation rating?
Power dissipation is limited by thermal resistance of 16 °C/W and a maximum junction temperature of 150 °C.
From: Analog Devices ADV3200/ADV3201 Analog Crosspoint Switch Datasheet
