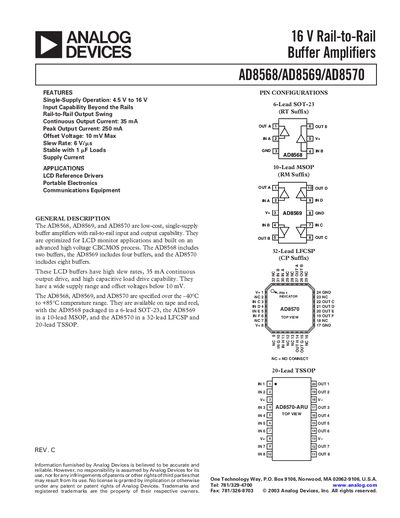

Analog Devices AD8568/AD8569/AD8570 Buffer Amplifier Datasheet
The AD8568, AD8569, and AD8570 are low‑cost, single‑supply buffer amplifiers offering rail‑to‑rail input and output. They are optimized for LCD driver applications and are available in multiple package types, including 6‑lead SOT‑23, 10‑lead MSOP, 20‑lead TSSOP, and 32‑lead LFCSP.
The document provides detailed electrical characteristics, absolute maximum ratings, typical performance curves, and ordering guides for each part number, along with mechanical outline dimensions and revision history.
Analog Devices AD8568 specifications
| Supply Voltage (Vs) | 4.5 V to 16 V |
|---|---|
| Continuous Output Current | 35 mA |
| Peak Output Current | 250 mA |
| Offset Voltage (max) | 10 mV |
| Slew Rate | 6 V/µs |
| Bandwidth (‑3 dB) | 6 MHz |
| Power Supply Rejection Ratio | 70 dB to 90 dB |
Source: Analog Devices AD8568/AD8569/AD8570 Buffer Amplifier Datasheet
