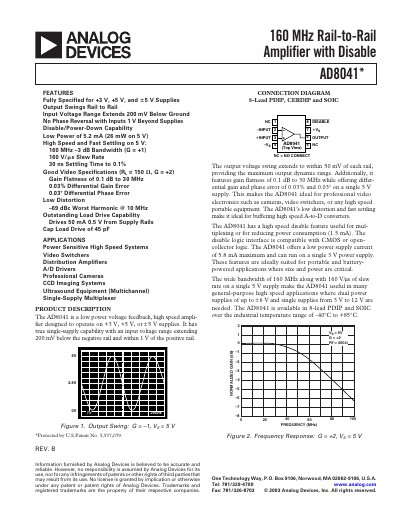

Analog Devices AD8041 160 MHz Rail‑to‑Rail Amplifier with Disable Handbook
The AD8041 is a low‑power, high‑speed operational amplifier designed for single‑supply operation at +3 V, +5 V, or ±5 V. It offers true rail‑to‑rail output swing, a wide input voltage range extending 200 mV below ground, and a fast disable/power‑down feature for power‑sensitive applications.
The document includes detailed electrical specifications, absolute maximum ratings, typical performance curves, and example application circuits such as RGB buffering and composite video line driving. Ordering information for various package options and recommended ESD handling procedures are also provided.
Analog Devices AD8041 specifications
| Bandwidth (‑3 dB) | 160 MHz |
|---|---|
| Quiescent Current (typical) | 5.2 mA |
| Input Voltage Noise (10 kHz) | 16 nV/√Hz |
| Input Common‑Mode Voltage Range | –0.2 V to +4 V |
| Output Voltage Swing (10 kΩ load) | 0.05 V to 4.95 V |
Source: Analog Devices AD8041 160 MHz Rail‑to‑Rail Amplifier with Disable Handbook
All Analog Devices AD8041 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical bandwidth of the AD8041?
The amplifier provides a –3 dB bandwidth of 160 MHz.
From: Analog Devices AD8041 160 MHz Rail‑to‑Rail Amplifier with Disable Handbook
How much current does the AD8041 draw in normal operation?
Typical quiescent current is 5.2 mA (up to 5.8 mA).
From: Analog Devices AD8041 160 MHz Rail‑to‑Rail Amplifier with Disable Handbook
