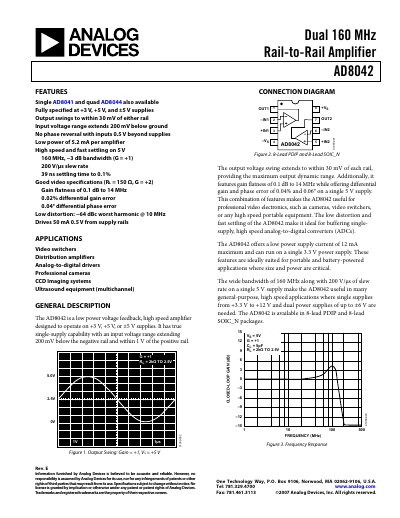

Analog Devices AD8042 Dual‑Channel Rail‑to‑Rail Amplifier Datasheet
The AD8042 is a voltage‑feedback, high‑speed operational amplifier designed for single‑supply operation at +3 V, +5 V, or ±5 V. It offers rail‑to‑rail output swing, low power consumption (≈5.5‑6.4 mA per amplifier), and a 200 V/µs slew rate, making it suitable for video switchers, distribution amplifiers, and high‑speed ADC drivers.
The device is available in 8‑lead PDIP and 8‑lead SOIC packages. Detailed specifications include a 160 MHz -3 dB bandwidth, 39 ns settling time to 0.1 %, and input voltage range extending 200 mV below the negative rail. Typical performance graphs, layout recommendations, and application circuits such as composite video line drivers are provided.
Analog Devices AD8042 specifications
| Bandwidth (-3 dB) | 160 MHz |
|---|---|
| Slew Rate | 200 V/µs |
| Supply Voltage Range | +3 V, +5 V, ±5 V |
| Quiescent Current (per amplifier) | 5.5–6.4 mA |
| Output Voltage Swing | within 30 mV of each rail |
| Input Voltage Range | 200 mV below negative rail, 1 V below positive rail |
Source: Analog Devices AD8042 Dual‑Channel Rail‑to‑Rail Amplifier Datasheet
All Analog Devices AD8042 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the bandwidth of the AD8042?
The AD8042 has a typical -3 dB bandwidth of 160 MHz.
From: Analog Devices AD8042 Dual‑Channel Rail‑to‑Rail Amplifier Datasheet
Which supply voltages can the AD8042 operate from?
It can operate from +3 V, +5 V, or ±5 V supplies.
From: Analog Devices AD8042 Dual‑Channel Rail‑to‑Rail Amplifier Datasheet
What is the typical supply current per amplifier?
The AD8042 draws about 5.5 mA per amplifier at a 5 V supply.
Which package options are available for the AD8042?
It is offered in 8‑lead PDIP (N) and 8‑lead SOIC_N (R) packages.
