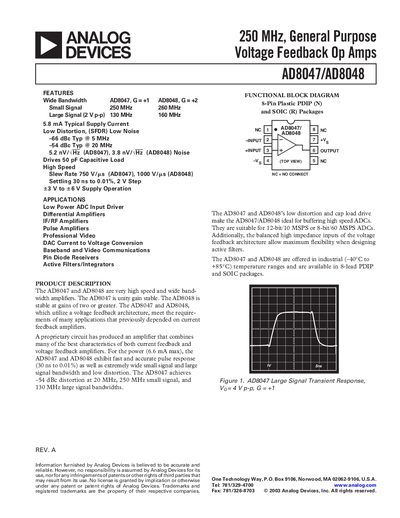

Analog Devices AD8047/AD8048 General‑Purpose Op‑Amp Datasheet
The AD8047 and AD8048 are high‑speed, wide‑bandwidth voltage‑feedback operational amplifiers. AD8047 is unity‑gain stable, while AD8048 is stable at gains of two or greater. Both devices feature low distortion, high slew rates, and the ability to drive 50 pF capacitive loads, making them suitable for high‑speed ADC buffering, video, and RF applications.
These amplifiers are offered in industrial‑grade temperature ranges (‑40 °C to +85 °C) and are available in 8‑lead PDIP and SOIC packages. Detailed electrical characteristics, absolute maximum ratings, and ordering information are provided in the datasheet.
Analog Devices AD8048 specifications
| Small‑Signal Bandwidth | 250 MHz (AD8047) / 260 MHz (AD8048) |
|---|---|
| Large‑Signal Bandwidth | 130 MHz (AD8047) / 160 MHz (AD8048) |
| Slew Rate | 750 V/µs (AD8047) / 1000 V/µs (AD8048) |
| Typical Supply Current | 5.8 mA (AD8047) / 6.6 mA (AD8048) |
| Input Voltage Noise (100 kHz) | 5.2 nV/√Hz (AD8047) / 3.8 nV/√Hz (AD8048) |
| Output Current Capability | 50 mA |
| Supply Voltage Range | +3 V to +6 V |
| Operating Temperature Range | -40 °C to +85 °C |
Source: Analog Devices AD8047/AD8048 General‑Purpose Op‑Amp Datasheet
All Analog Devices AD8048 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical supply current for the AD8047 and AD8048?
The AD8047 draws about 5.8 mA typical, while the AD8048 draws about 6.6 mA typical.
From: Analog Devices AD8047/AD8048 General‑Purpose Op‑Amp Datasheet
Which package types are available for these op‑amps?
Both devices are offered in 8‑lead PDIP (N) and 8‑lead SOIC (R) packages.
From: Analog Devices AD8047/AD8048 General‑Purpose Op‑Amp Datasheet
What is the typical supply current for the AD8048?
The AD8048 draws about 6.6 mA of quiescent current.
Which package options are available for the AD8047/AD8048?
They are offered in 8‑lead PDIP (N) and 8‑lead SOIC (R) packages.
