Start here

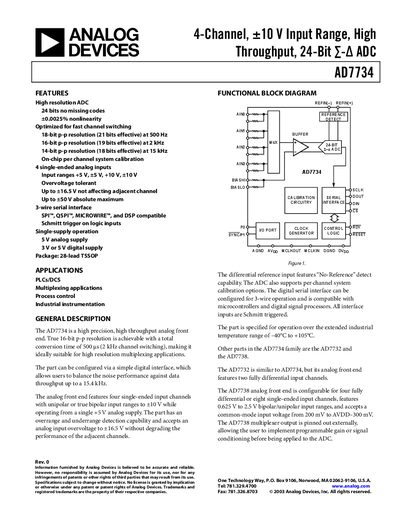

Analog Devices AD7734 Datasheet
The AD7734 high‑precision, high‑throughput analog‑to‑digital converter offers four single‑ended inputs, selectable input ranges up to +10 V, and over‑voltage tolerance up to +16.5 V. It operates from a single 5 V analog supply and supports SPI, QSPI, Microwire, and DSP‑compatible serial interfaces with Schmitt‑triggered logic inputs.
Key specifications include 24‑bit resolution with no missing codes, conversion rates up to 12.2 kHz (chopping enabled), and operation over an industrial temperature range of –40 °C to +105 °C. The device is supplied in a 28‑lead TSSOP package and is intended for PLC/DCS, multiplexing, process control, and industrial instrumentation applications.
Analog Devices AD7734 specifications
| Resolution | 24 bits |
|---|---|
| Input Range | +5 V, +10 V |
| Over‑voltage Tolerance | Up to +16.5 V |
| Supply Voltage | 5 V analog, 3 V or 5 V digital |
| Package | 28‑lead TSSOP |
| Operating Temperature | -40 °C to +105 °C |
| Maximum Conversion Rate (chopping enabled) | 12.190 kHz |
Source: Analog Devices AD7734 Datasheet
All Analog Devices AD7734 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate with chopping enabled?
The device can achieve a conversion rate of 12.190 kHz when chopping is enabled.
What package does the AD7734 come in?
The AD7734 is supplied in a 28‑lead TSSOP package.
What temperature range can the AD7734 operate in?
The device is specified for operation from –40 °C to +105 °C.
Which digital interfaces are supported by the AD7734?
The AD7734 supports 3‑wire serial interfaces compatible with SPI™, QSPI™, MICROWIRE™ and DSP.
