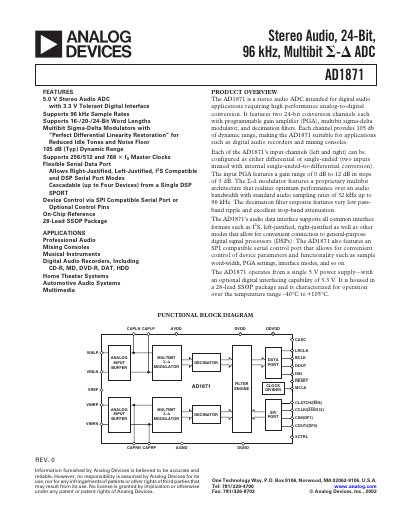

Analog Devices AD1871 Stereo Audio ADC Datasheet
The AD1871 stereo audio ADC is intended for high‑performance digital audio applications such as mixing consoles, digital recorders and home‑theater systems. It provides two 24‑bit conversion channels with programmable gain and supports both differential and single‑ended inputs.
Key features include a 5 V supply, 105 dB A‑weighted dynamic range, 96 kHz maximum sample rate, multiple serial data formats (I²S, left‑justified, right‑justified, DSP), and an SPI‑compatible control port. The device is supplied in a 28‑lead SSOP package and operates from –40 °C to +105 °C.
Analog Devices AD1871 specifications
| Dynamic Range (A‑Weighted) | 105 dB (Typ) |
|---|---|
| Supported Sample Rate | Up to 96 kHz |
| Resolution | 24 Bits |
| Package | 28‑Lead SSOP |
| Operating Temperature Range | –40 °C to +105 °C |
Source: Analog Devices AD1871 Datasheet
All Analog Devices AD1871 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the dynamic range of the AD1871?
The AD1871 provides a typical A‑weighted dynamic range of 105 dB.
What sample rates does the AD1871 support?
It supports sample rates up to 96 kHz.
