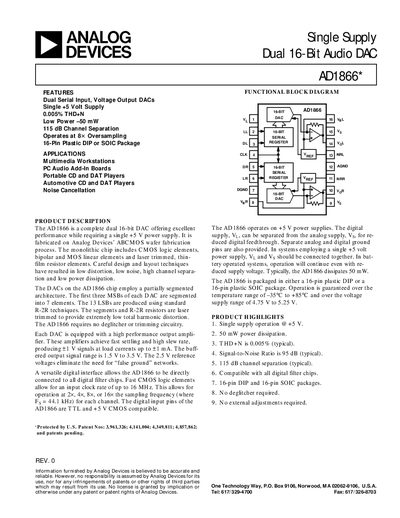

Analog Devices AD1866 Dual 16‑Bit Audio DAC Datasheet
The AD1866 is a complete monolithic dual 16‑bit digital‑to‑analog converter that operates from a single +5 V supply. It integrates CMOS logic, bipolar and MOS linear elements, and laser‑trimmed thin‑film resistors to achieve low THD+N (0.005 % typical), high signal‑to‑noise ratio (95 dB typical) and excellent channel separation (115 dB typical). The device is offered in 16‑pin plastic DIP or SOIC packages and is suitable for multimedia workstations, PC audio add‑in boards, portable CD/DAT players and automotive audio applications.
The datasheet provides detailed electrical specifications, absolute maximum ratings, grounding and power‑supply recommendations, as well as recommended circuit schematics for noise reduction and biasing. Typical performance graphs illustrate THD+N versus frequency, channel separation, and power‑supply rejection, helping designers optimize audio quality in battery‑powered or low‑power systems.
Analog Devices AD1866 specifications
| Resolution | 16 Bits |
|---|---|
| Power Dissipation | 50 mW typical |
| Signal‑to‑Noise Ratio | 95 dB typical |
| Channel Separation | 115 dB typical |
| Supply Voltage | 4.75 V – 5.25 V |
| Operating Temperature Range | -35 °C to +85 °C |
| Output Range | +1 V |
| Output Impedance | 0.1 Ω |
| Load Current | 1 mA |
Source: Analog Devices AD1866 Dual 16‑Bit Audio DAC Datasheet
All Analog Devices AD1866 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage does the AD1866 require?
The AD1866 operates from a single +5 V supply, with an allowed range of 4.75 V to 5.25 V.
Does the AD1866 need an external deglitcher?
No external deglitcher is required for the AD1866.
What is the maximum clock input frequency of the AD1866?
The maximum clock input frequency is 13.5 MHz.
How many power‑supply pins does the AD1866 have?
The AD1866 has three power‑supply input pins: V S (pins 9 and 15) and V L (pin 1).
