The HLMP-130X series is a high intensity T-1 (3 mm) LED lamp with 4 bright colors including high efficiency red, orange, yellow and high performance green. This family of T-1 lamps is widely used in general purpose indicator applications. Diffusants, tints and optical design are balanced to yield superior light output and wide viewing angles. Several intensity choices are available in each color for increased design flexibility.

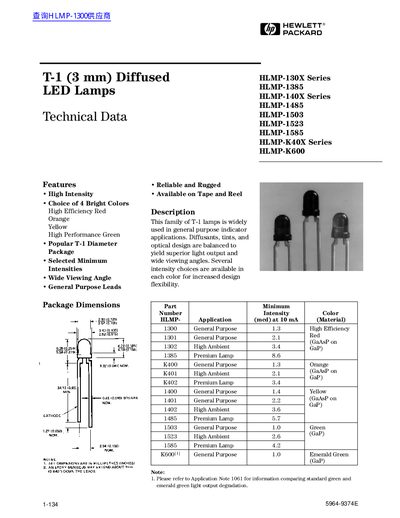

This document provides technical specifications for a family of T-1 diameter diffused LED lamps manufactured by Hewlett-Packard. The product line includes various series such as HLMP-130X (Red), HLMP-K40X (Orange), HLMP-140X (Yellow), and HLMP-150X/K600 (Green/Emerald Green). These lamps are designed for general-purpose indicator applications, offering high intensity and wide viewing angles.
| Peak Forward Current (Red/Orange/Green) | 90 mA |
|---|---|
| Average Forward Current (Red/Orange/Green) | 25 mA |
| Reverse Voltage | 5 V |
| Operating Temperature Range (Red/Orange/Green) | -55 to +100 °C |
| Peak Wavelength (Red) | 635 nm |
| Included Angle Between Half Luminous Intensity Points | 60 Deg. |
These colors can operate in a temperature range from -55 to +100 degrees Celsius.
The peak wavelength for emerald green is 558 nanometers.
