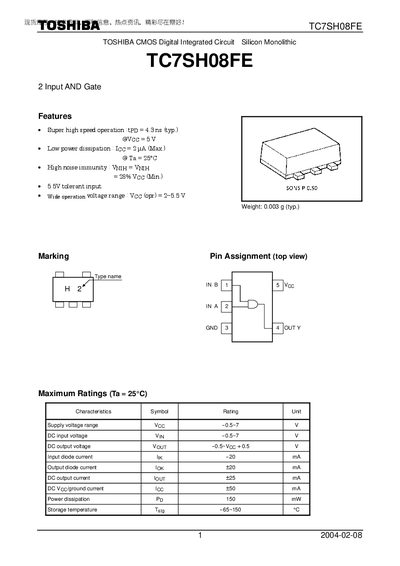

TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
The TC7SHO8FE is a CMOS digital integrated circuit that implements a 2‑input AND gate with high‑speed operation (typical propagation delay 4.3 ns) and low power dissipation. Key features include a wide supply voltage range, 5.5 V tolerant inputs, and high noise immunity.
The device is supplied in a SONS‑P‑0.50 package, weighs 0.003 g, and is rated for operation from –40 °C to 85 °C. Maximum ratings cover supply voltage up to 5.5 V, output current 25 mA, and power dissipation of 150 mW. The datasheet also outlines recommended operating conditions and usage restrictions for safety‑critical applications.
Toshiba TC7SH08FE specifications
| Typical propagation delay (tpp) | 4.3 ns |
|---|---|
| Power dissipation | 150 mW |
| Weight | 0.003 g (typ.) |
Source: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
All Toshiba TC7SH08FE documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7SHO8FE?
The typical propagation delay is 4.3 ns.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
What package type is used for the TC7SHO8FE?
It is packaged in a SONS‑P‑0.50 package.
From: TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic TC7SH08FE Manual(1)
What is the typical propagation delay of the TC7SH08FE?
The typical propagation delay (tpp) is 4.3 ns.
What supply voltage range does the TC7SH08FE support?
It operates from 2 V to 5.5 V.
