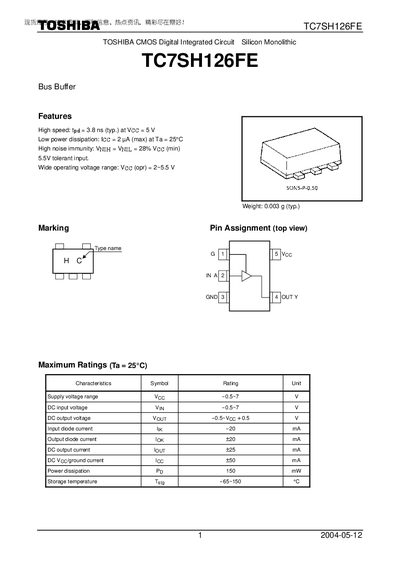

Toshiba TC7SH126FE Handbook
The TC7SH126FE is a CMOS digital bus buffer offering high‑speed operation with a typical propagation delay of 3.8 ns at 5 V and low power consumption (Icc = 2 µA max). It supports a wide operating voltage range of 2 V to 5.5 V and provides strong noise immunity.
The device is supplied in a SON5‑P‑0.50 package weighing 0.003 g, with maximum ratings such as 150 mW power dissipation and storage temperature from –65 °C to 150 °C. The handbook also includes recommended operating conditions, electrical and AC characteristics, pin assignments, and usage restrictions for safe design integration.
Toshiba TC7SH126FE specifications
| Propagation delay (tpd) | 3.8 ns (typ.) at Vcc=5 V |
|---|---|
| Supply current (Icc) | 2 µA (max) at 25 °C |
| Input voltage range | 2~5.5 V |
| Power dissipation | 150 mW |
| Storage temperature | -65~150 °C |
Source: Toshiba TC7SH126FE Handbook
