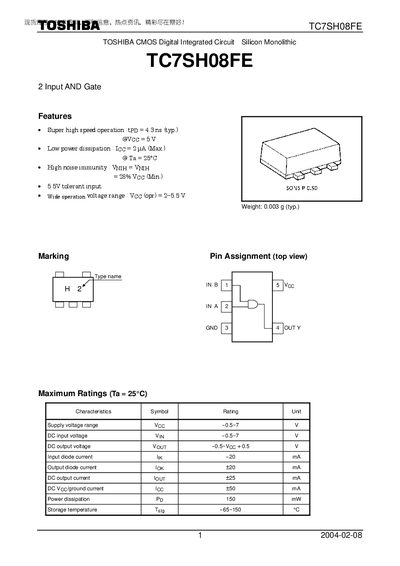

TC7SH08FE is a 2-input AND gate chip produced by Toshiba, which has the characteristics of ultra-high speed, low power consumption, high anti-interference, and 5.5V wide input voltage range.
The TC7SH08FE is a CMOS 2‑input AND gate with high‑speed operation (typical propagation delay 4.3 ns) and low power dissipation. It operates over a wide supply range (2 V to 5.5 V) and offers high noise immunity, making it suitable for general electronics applications.
The document lists detailed electrical parameters, AC characteristics, package dimensions, and recommended operating conditions, as well as important restrictions on product use, emphasizing that the device is not intended for safety‑critical or high‑reliability systems.
| Propagation delay (typ.) | 4.3 ns |
|---|---|
| Supply voltage range (VCC) | 2 V ~ 5.5 V |
| Power dissipation | 150 mW |
| Weight (typ.) | 0.003 g |
| Maximum output current | 25 mA |
The typical propagation delay (tpp) is 4.3 ns.
It operates from 2 V to 5.5 V.
No, the device is not intended for safety‑critical or high‑reliability applications such as medical or aerospace equipment.
The maximum power dissipation is 150 mW.
