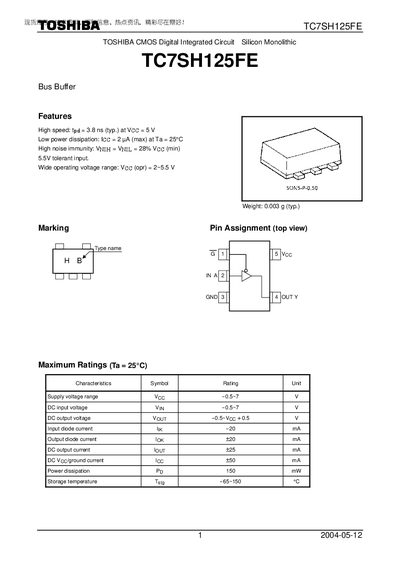

Toshiba TC7SH125FE CMOS Digital Integrated Circuit Datasheet
The TC7SH125FE is a CMOS digital bus buffer with high‑speed operation (tpd = 3.8 ns typ. at 5 V) and low power dissipation (Icc = 2 µA max at 25 °C). It supports a wide operating voltage range of 2 V to 5.5 V and offers high noise immunity. The device is supplied in a SON5‑P‑0.50 package weighing 0.003 g (typ.).
Maximum ratings, recommended operating conditions, and detailed DC/AC electrical characteristics are listed, along with package dimensions and restrictions on product use. The device is intended for general electronics applications and must be used within the specified temperature range of –40 °C to 85 °C.
Toshiba TC7SH125FE specifications
| Propagation delay (tpd) | 3.8 ns typ. at Voc = 5 V |
|---|---|
| Supply current (Icc) | 2 µA max at Ta = 25 °C |
| Operating voltage range | 2 V ~ 5.5 V |
| Power dissipation (Pp) | 150 mW |
| Package type | SON5-P-0.50 |
| Weight | 0.003 g typ. |
| Operating temperature | -40 °C ~ 85 °C |
Source: Toshiba TC7SH125FE CMOS Digital Integrated Circuit Datasheet
All Toshiba TC7SH125FE documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7SH125FE?
The typical propagation delay is 3.8 ns at a 5 V supply.
From: Toshiba TC7SH125FE CMOS Digital Integrated Circuit Datasheet
What supply voltage range can the device operate within?
It operates from 2 V to 5.5 V.
From: Toshiba TC7SH125FE CMOS Digital Integrated Circuit Datasheet
What is the typical propagation delay of the TC7SH125FE?
The typical propagation delay is 3.8 ns when powered at 5 V.
What supply voltage range does the TC7SH125FE support?
It operates from 2 V up to 5.5 V.
