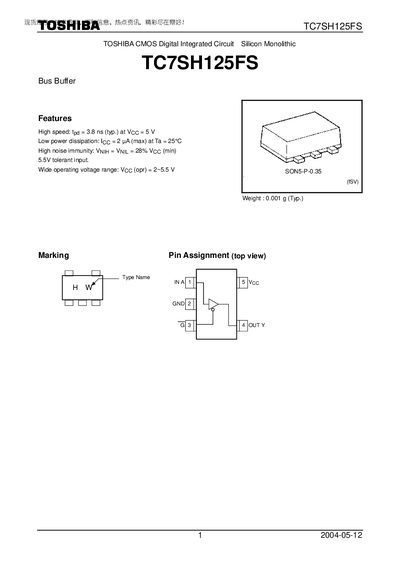

Toshiba TC7SH125FS Bus Buffer Datasheet
The TC7SH125FS is a CMOS digital bus buffer from Toshiba offering high‑speed operation with a typical propagation delay of 3.8 ns at a 5 V supply and ultra‑low power dissipation of 2 pA. It features a wide operating voltage range (2 V to 5.5 V) and high noise immunity (28 % VCC). The device is supplied in a compact package weighing only 0.001 g.
The datasheet lists maximum ratings, recommended operating conditions, AC and DC electrical characteristics, and mechanical dimensions. It also includes usage restrictions, emphasizing compliance with safety standards and avoiding unintended applications such as aerospace or medical equipment.
Toshiba TC7SH125FS specifications
| Propagation delay (tpd) | 3.8 ns (typ.) at Vcc = 5 V |
|---|---|
| Quiescent supply current (Icc) | 2 pA (max) at 25 °C |
| Noise immunity (VNiH/VNiL) | 28 % VCC (min) |
| Operating voltage range (VCC) | 2 V to 5.5 V |
| Supply voltage range (Voc) | -0.5 V to 7.0 V |
| Power dissipation (Pp) | 50 mW |
| Weight | 0.001 g (typ.) |
All Toshiba TC7SH125FS documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical propagation delay of the TC7SH125FS?
The typical propagation delay is 3.8 ns at a 5 V supply.
What supply voltage range can the device tolerate?
The device can tolerate a supply voltage from –0.5 V up to 7.0 V.
What is the supply voltage range for the TC7SH125FS?
The device operates with a supply voltage (Vcc) from 2.0 V to 5.5 V.
What is the typical power dissipation of the TC7SH125FS?
Typical power dissipation is 50 mW.
What is the typical high‑speed propagation delay of the TC7SH125FS?
The typical high‑speed propagation delay is 3.8 ns.
What is the maximum power dissipation of the device?
The maximum power dissipation is 50 mW.
