TB62600FG is an integrated circuit specifically designed for 64-bit thermal head drivers. It is designed to be used together with Bi-CMOS (DMOS) integrated circuits. The device consists of a 64-bit shift register, dual 64-bit latches, and 64 output DMOS structures.

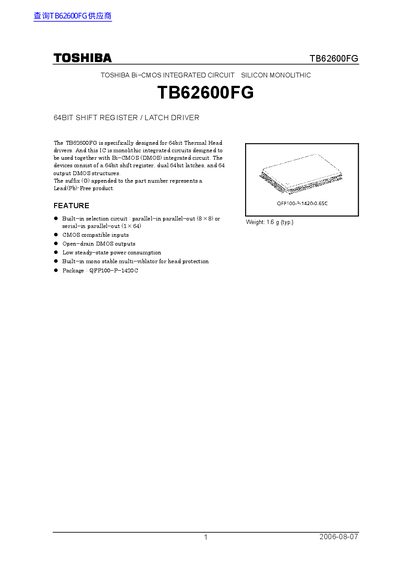

The Toshiba TB62600FG is a Bi-CMOS integrated circuit specifically designed as a 64-bit shift register and latch driver for thermal head devices. It features built-in selection circuits supporting both parallel-in-parallel-out (8x8) and serial-in-parallel-out (1x64) modes, along with open-drain DMOS outputs.
| Function | 64bit Shift Register / Latch Driver |
|---|---|
| Package Type | QFP100-P-1420-0.65C |
| Operating Temperature | -40~85 °C |
| Supply Voltage (Typ) | 5 V |
| Output Current | 130 mA/ch |
It is specifically designed for use as a driver in 64-bit thermal heads.
No, the suffix 'G' indicates it is a Lead(Pb)-Free product.
