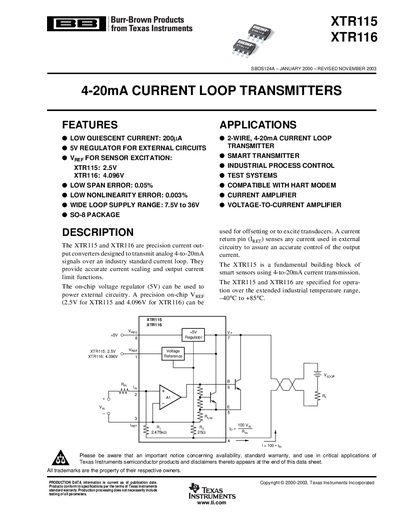

Texas Instruments XTR115 XTR116 Datasheet
The XTR115 and XTR116 are precision current‑output converters that generate a 4‑20 mA loop signal for industrial process control, smart transmitters, and test systems. They include an on‑chip 5 V regulator for external circuitry and provide reference voltages of 2.5 V (XTR115) and 4.096 V (XTR116). The devices feature low span error (0.05 %), low non‑linearity (0.003 %), and a wide loop supply range of 7.5 V to 36 V.
Typical applications include two‑wire current loops, HART‑compatible smart sensors, voltage‑to‑current conversion, and current amplification. The datasheet details specifications, pin configuration, absolute maximum ratings, performance curves, protection methods, and mechanical dimensions for the SO‑8 package.
Texas Instruments XTR115 specifications
| Quiescent current | 200 µA |
|---|---|
| Reference voltage (XTR115) | 2.5 V |
| Reference voltage (XTR116) | 4.096 V |
| Low span error | 0.05 % |
| Low non‑linearity error | 0.003 % |
| Loop supply voltage range | 7.5 V to 36 V |
| Package type | SO‑8 |
| Operating temperature range | –40 °C to +85 °C |
| Linear output current range | 0.25 mA to 25 mA |
| Slew rate | 3.2 mA/µs |
All Texas Instruments XTR115 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the quiescent current of the XTR115/XTR116?
The quiescent current is 200 µA.
What reference voltages do the XTR115 and XTR116 provide?
The XTR115 provides a 2.5 V reference and the XTR116 provides a 4.096 V reference.
What is the quiescent current of the XTR115/XTR116?
The quiescent current is 200 µA typical.
From: Texas Instruments XTR115 XTR116 4-20mA Current Loop Transmitter Datasheet
What reference voltage does the XTR116 provide?
The XTR116 provides a 4.096 V reference voltage.
From: Texas Instruments XTR115 XTR116 4-20mA Current Loop Transmitter Datasheet
