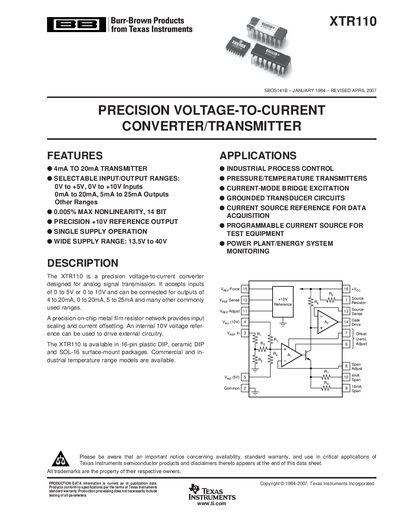

Texas Instruments XTR110 Precision Voltage-to-Current Converter Datasheet
The XTR110 precision voltage‑to‑current converter is designed for analog signal transmission in industrial process control, pressure/temperature transmitters, and data‑acquisition systems. It accepts 0‑5 V or 0‑10 V inputs and provides selectable output current ranges such as 4‑20 mA, 0‑20 mA and 5‑25 mA.
The device operates from a single supply of 13.5 V to 40 V, offers a +10 V precision reference output, and is available in 16‑pin plastic DIP, ceramic DIP and SOL‑16 surface‑mount packages. Detailed electrical characteristics, typical performance curves and mechanical dimensions are provided.
Texas Instruments XTR110 specifications
| Input voltage range | 0 V to 5 V or 0 V to 10 V |
|---|---|
| Output current range | 4 mA‑20 mA, 0 mA‑20 mA, 5 mA‑25 mA |
| Supply voltage range | 13.5 V to 40 V |
| Maximum nonlinearity | 0.005 % of span |
| Reference output | +10 V precision reference |
| Package options | 16‑pin plastic DIP, ceramic DIP, SOL‑16 surface‑mount |
| Commercial temperature range | ‑40 °C to +85 °C |
| Industrial temperature range | ‑55 °C to +125 °C |
Source: Texas Instruments XTR110 Precision Voltage-to-Current Converter Datasheet
All Texas Instruments XTR110 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What supply voltage range does the XTR110 support?
The XTR110 operates from a single supply of 13.5 V to 40 V.
From: Texas Instruments XTR110 Precision Voltage-to-Current Converter Datasheet
What is the maximum nonlinearity specification?
The device’s nonlinearity is limited to 0.005 % of the full‑scale span.
From: Texas Instruments XTR110 Precision Voltage-to-Current Converter Datasheet
What supply voltage range does the XTR110 support?
The XTR110 operates from a single supply voltage between 13.5 V and 40 V.
From: Texas Instruments XTR110 Precision Voltage-to-Current Converter/Transmitter Datasheet
How can the output current range be changed?
The output current range is set by selecting different pin connections and, if needed, adding an external resistor (RSPAN) to adjust the span; standard ranges include 4‑20 mA, 0‑20 mA, and 5‑25 mA.
From: Texas Instruments XTR110 Precision Voltage-to-Current Converter/Transmitter Datasheet
