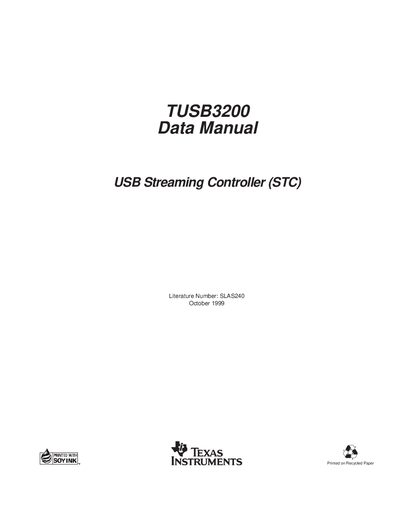

The TUSB3200 is a USB Streaming Controller (STC) data manual from Texas Instruments.
The TUSB3200 is a USB peripheral interface IC designed for isochronous data streaming applications such as digital speakers. It integrates a USB transceiver, an 8052‑core MCU, a CODEC port interface, and a DMA controller, all implemented in a 3.3‑V CMOS process.
The manual details the device architecture, electrical characteristics, pin assignments for normal and external‑MCU modes, mechanical dimensions, and packaging information, along with register maps and programming guidelines.
| Maximum USB data rate | 12 Mb/s (full speed) |
|---|---|
| Program memory ROM size | 4 KB |
| Program memory RAM size | 8 KB |
| Internal data memory RAM size | 256 B |
| Number of DMA channels | 4 |
| Supply voltage range (DVDD) | -0.5 V to 3.6 V |
| Operating temperature range | -65 °C to 150 °C |
The device supports up to 12 Mb/s full‑speed USB data transfers.
It can handle up to seven IN and seven OUT endpoints plus a control endpoint.
The DVDD supply must be between –0.5 V and 3.6 V.
Four DMA channels are provided for streaming USB isochronous data to/from the CODEC port.
