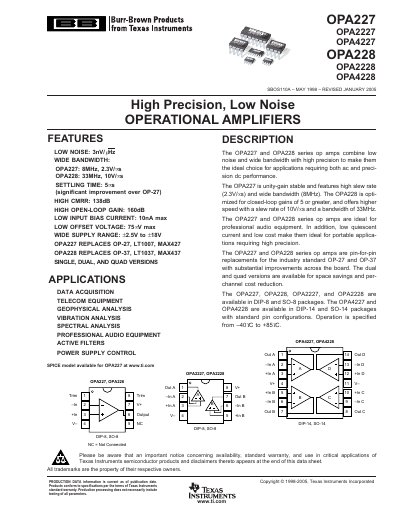

Texas Instruments OPA227/OPA228 Operational Amplifier Datasheet
The OPA227 and OPA228 series operational amplifiers combine low noise, wide bandwidth, and high precision. The OPA227 is unity‑gain stable with an 8 MHz gain‑bandwidth product and 2.3 V/µs slew rate, while the OPA228 offers a 33 MHz gain‑bandwidth product and 10 V/µs slew rate for higher‑speed applications.
Both families are available in DIP‑8, SO‑8, DIP‑14 and SO‑14 packages and operate from –40 °C to +85 °C. They replace legacy OP‑27 and OP‑37 devices, providing improved performance for data‑acquisition, telecom, audio, and instrumentation designs.
Texas Instruments OPA227 specifications
| Supply Voltage Range (VS) | ±5 V to ±15 V |
|---|---|
| Operating Supply Voltage Range | ±2.5 V to ±18 V |
| Slew Rate | 2.3 V/µs (OPA227), 10 V/µs (OPA228) |
| Input Bias Current | ±2.5 nA to ±10 nA |
| Common‑Mode Rejection Ratio (CMRR) | 138 dB |
| Operating Temperature Range | –40 °C to +85 °C |
Source: Texas Instruments OPA227/OPA228 Operational Amplifier Datasheet
All Texas Instruments OPA227 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What temperature range can the devices operate in?
The devices operate from –40 °C up to +85 °C.
From: Texas Instruments OPA227/OPA228 Operational Amplifier Datasheet
What is the supply voltage range for these amplifiers?
The devices operate from +2.5 V up to +18 V.
What is the input bias current specification?
The input bias current is specified as 10 nA maximum.
