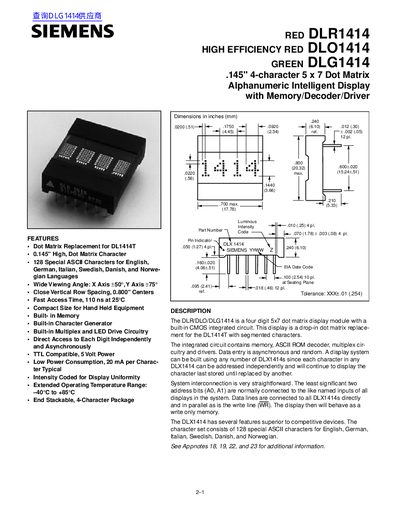

SIEMENS RED DLR1414 HIGH EFFICIENCY RED DLO1414 GREEN DLG1414
The Siemens DLR/DLO/DLG1414 is a four-digit 5x7 dot matrix alphanumeric display module designed as a drop-in replacement for the DL1414T. It features a built-in CMOS integrated circuit containing memory, an ASCII ROM decoder, multiplex circuitry, and drivers to support asynchronous data entry.
Read onlineSiemens DLR1414 specifications
| Character Height | 0.145" |
|---|---|
| Operating Temperature Range | -40 ° C to +85 ° C |
| Supply Voltage | 5 Volt Power |
| Access Time at 25 ° C | 110 ns |
Source: SIEMENS RED DLR1414 HIGH EFFICIENCY RED DLO1414 GREEN DLG1414
All Siemens DLR1414 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What languages are supported by the character set?
The display supports English, German, Italian, Swedish, Danish, and Norwegian.
From: SIEMENS RED DLR1414 HIGH EFFICIENCY RED DLO1414 GREEN DLG1414
Is this module compatible with the DL1414T?
Yes, it is designed as a direct dot matrix replacement for the DL1414T.
From: SIEMENS RED DLR1414 HIGH EFFICIENCY RED DLO1414 GREEN DLG1414
What is the access time of the DLR1414 display?
The DLR1414 has a fast access time of 110 ns at 25 °C.
How many ASCII characters are supported and which languages are included?
It supports 128 special ASCII characters covering English, German, Italian, Swedish, Danish, and Norwegian.
