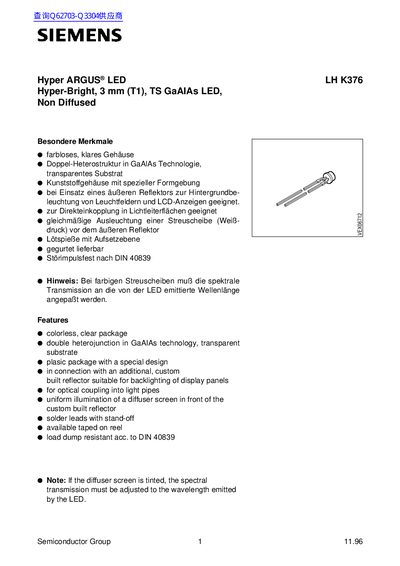

Siemens LH K376 Hyper ARGUS LED Datasheet
This document is a technical datasheet for the Siemens LH K376 series of LEDs. The product is described as a hyper-bright, 3 mm (11) TS GaAlAs LED with a non-diffused, colorless clear package and double heterojunction technology on a transparent substrate.
The datasheet provides detailed specifications including maximum ratings such as operating temperature ranges from -55 to +100 °C, forward current limits of 50 mA, and reverse voltage up to 3 V. It also lists electrical characteristics like peak emission wavelength at 660 nm and dominant wavelength at 645 nm, along with switching times and thermal resistance values.
Siemens K376 specifications
| Technology | double heterojunction in GaAlAs technology, transparent substrate |
|---|---|
| Package Type | colorless, clear package |
| Operating Temperature Range | -55... + 100 C |
| Forward Current (It) | 50 mA |
| Reverse Voltage (Va) | 3 Vv |
| Peak Emission Wavelength | 660 nm |
| Dominant Wavelength | 645 nm |
All Siemens K376 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating temperature range for this LED?
The device operates within a temperature range of -55 to +100 C.
What is the maximum permissible forward current?
The maximum permissible forward current is 50 mA.
What is the peak emission wavelength of the LH K376 LED?
The peak emission wavelength is 660 nm.
What is the maximum forward current for the LH K376?
The maximum forward current is 50 mA.
