Key facts
- Brand
- Siemens
- Model
- Z181
- Industry
- Industrial
- Documents
- 2
- Languages
- EN · DE
- Last added
- 2012-06-06
Start here

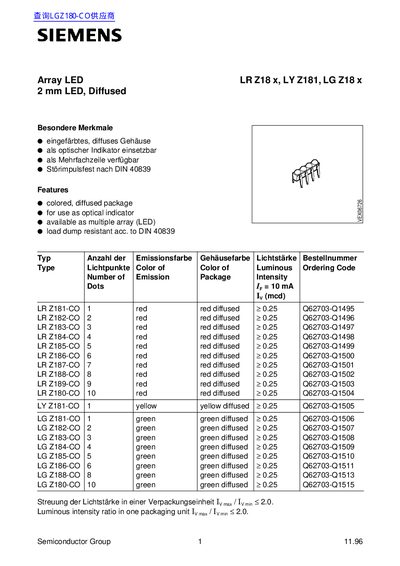

SIEMENS LR Z18 x LY Z181 LG Z18 x Manual
Datasheet 7 pages · 396 KB · EN
This document is a technical datasheet for the Siemens Array LED series, specifically models LR Z18 x, LY Z181, and LG Z18 x. These components feature colored, diffused packages designed for use as optical indicators and are available in multiple array configurations.
The datasheet provides detailed maximum ratings, including operating temperatures from -40°C to +80°C and a forward current of 30 mA. It also lists specific characteristics such as peak emission wavelengths (660 nm for red, 586 nm for yellow, 565 nm for green), viewing angles, capacitance values, and switching times.
Siemens Z181 specifications
| Operating temperature range | -40...+80 Cc |
|---|---|
| Forward current | 30 mA |
| Reverse voltage | 5 Vv |
| Power dissipation | 80 mw |
All Siemens Z181 documents by type
Datasheet 1
Ratings, dimensions and ordering codes, for selection and design work.
