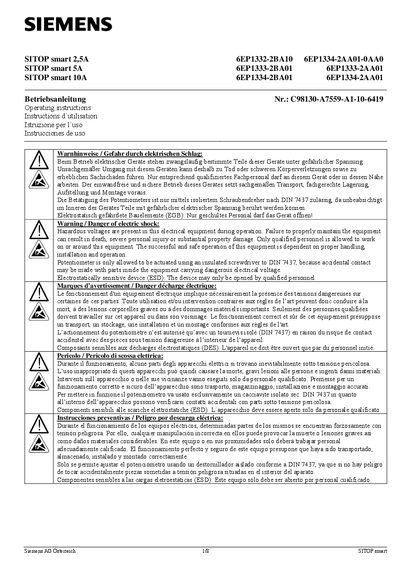

SIEMENS 6EP1332-2BA10 6EP1333-2BA01 6EP1334-2BA01 6EP1334-2AA01-0AA0 6EP1333-2AA01 6EP1334-2AA01 handbook
This manual contains important safety information for the SITOP Smart 24 V power supplies. Only qualified personnel may work on the equipment, the main switch must be turned off and locked out before any installation or maintenance, and a protective device (fuse) and disconnecting device must be provided. The units must be mounted vertically with a minimum 50 mm clearance above and below, and the input and output terminals must face downward.
The document also lists the electrical characteristics of the supplies: input voltage 120/230 V AC, input voltage range 85‑132 V / 170‑264 V AC, frequency 47‑63 Hz, output voltage 24 V DC, ripple <150/240 mV, efficiency up to 91 % at full load, protection class I, IP 20, operating temperature 0 °C‑+60 °C and storage temperature –40 °C‑+85 °C. Parallel operation of two identical units is allowed under specific conditions.
Siemens 6EP1333-2BA01 specifications
| Input nominal voltage | 120/230 V AC |
|---|---|
| Input voltage range | 85‑132 V / 170‑264 V AC |
| Input frequency range | 47‑63 Hz |
| Output nominal voltage | 24 V DC |
| Output ripple / spikes | < 150/240 mV |
| Protection class | I |
| IP rating | IP 20 |
| Operating temperature range | 0 °C … +60 °C |
| Storage temperature range | -40 °C … +85 °C |
