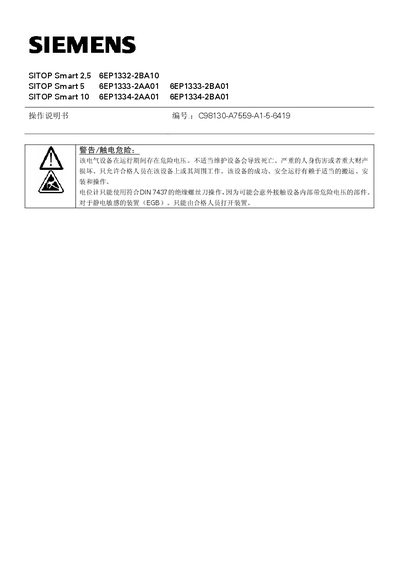

SIEMENS SITOP Smart 2 5 6EP1332-2BA10 SITOP Smart 5 6EP1333-2AA01 6EP1333-2BA01 SITOP Smart 10 6EP1334-2AA01 6EP1334-2BA01 operating Manual

About this manual

This manual begins with safety information, warning that only qualified personnel should install or service the SITOP Smart power supplies and that power must be disconnected before work. It references DIN 7437, IEC60364, and EN 50178 requirements and highlights hazards such as electric shock and fire.

The document then covers installation and wiring, specifying input voltage ranges (AC 120‑230 V, 50/60 Hz), output voltage (DC 24 V), current ratings (2.5 A, 5 A, 10 A), environmental limits, IP20 protection, EMC compliance, and certification marks (CE, UL, etc.). Technical data tables list ratings, temperature limits, and overload characteristics for each model. This manual is written in Chinese.

What's inside

• Safety Information
• Installation and Wiring
• Technical Data
• Environmental Conditions
• EMC and Compliance
• Ratings and Limits
• Dimensions and Weight
• Certifications

Specifications

Frequently asked questions

What safety precautions must be taken before installing the SITOP Smart power supply?

Only qualified personnel should install or service the unit, power must be disconnected, and DIN 7437, IEC60364, and EN 50178 guidelines must be followed.

What is the required input voltage for the SITOP Smart series?

The power supplies accept an AC input voltage of 120 V to 230 V at 50 Hz or 60 Hz.

What is the output voltage of the SITOP Smart power supplies?

All models provide a regulated DC output of 24 V.
