Start here

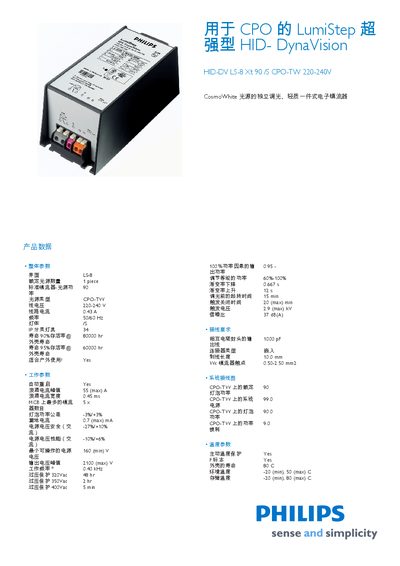

PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-8 Xt 90 /S CPO-TW 220-240V user manual
This manual details the overall parameters of the Philips LumiStep HID‑DV LS‑8 Xt 90 /S CPO‑TW, including electrical ratings, temperature limits, and expected lamp life. It also lists safety requirements, dimension data, and compliance with standards such as IEC 61000‑3‑2 and ISO 9000.
Key sections cover working parameters (e.g., maximum current 55 A, voltage range 220‑240 V), temperature parameters (operating range –20 °C to 50 °C), and installation guidelines. The document includes product dimensions, contact spacing, and environmental ratings, helping installers and users ensure proper setup and maintenance. This manual is written in Chinese.
Philips LS-8 specifications
| Maximum current | 55 A |
|---|---|
| Maximum leakage current | 0.7 mA |
| Minimum voltage | 160 V |
| Maximum voltage | 2100 V |
| Frequency | 0.40 kHz |
| Rated life (90% survival) | 80 000 hr |
| Rated life (95% survival) | 60 000 hr |
| Capacitance | 1000 pF |
| Cross‑section | 0.50‑2.50 mm² |
| Maximum surge voltage | 2.9 kV |
Source: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-8 Xt 90 /S CPO-TW 220-240V user manual
All Philips LS-8 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the rated voltage range for the Philips LumiStep HID‑DV LS‑8 Xt 90 /S?
The fixture is rated for 220‑240 V operation.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-8 Xt 90 /S CPO-TW 220-240V user manual
What is the maximum current rating of the LumiStep HID‑DV LS‑8 Xt 90 /S?
The maximum current is 55 A.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-8 Xt 90 /S CPO-TW 220-240V user manual
