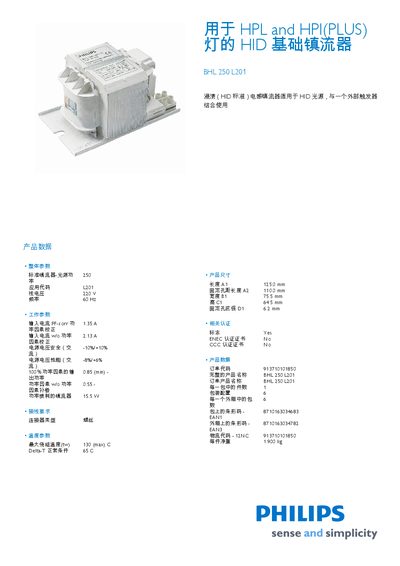

Philips BHL 250 L201 Ballast Manual
The document lists the electrical and performance parameters of the Philips BHL 250 L201 HID ballast, including voltage, frequency, current, power factor and power consumption. It also gives temperature limits and safety information for AC operation.
Additional sections describe the physical dimensions, weight, packaging configuration, and barcode identifiers for the product, as well as the manufacturer's contact information. This manual is written in Chinese.
Philips L201 specifications
| Power Factor (min) | 0.85 |
|---|---|
| Maximum Operating Temperature | 130 °C |
| Length | 150.0 mm |
| Width | 135.0 mm |
| Weight | 2.750 kg |
All Philips L201 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the physical dimensions of the BHL 400 L201?
The lamp measures 150.0 mm × 135.0 mm × 75.5 mm with a diameter of 64.5 mm and a thickness of 6.2 mm.
What are the physical dimensions of the BHL 250 L201?
It measures 125.0 mm × 110.0 mm × 75.5 mm.
What is the maximum operating temperature?
The maximum temperature is 130 °C.
