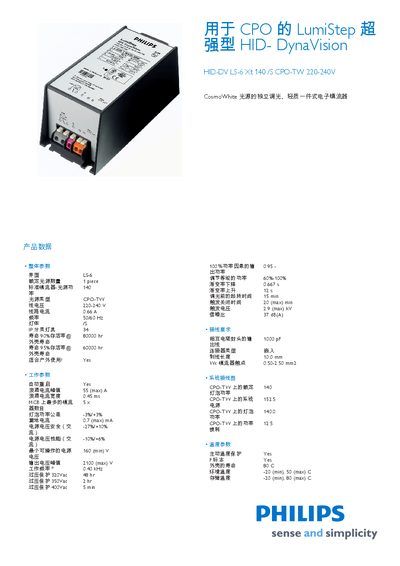

PHILIPS HID-DV LS-6 Xt 140 /S CPO-TW 220-240V Manual
This manual details the technical data and operating instructions for the Philips HID‑DV LS‑6 Xt 140 HID lighting product. It includes overall parameters, operating limits, temperature characteristics, safety standards, and physical dimensions.
Key sections cover rated voltage (220‑240 V), maximum current (55 A), lifespan (up to 80 000 h), weight (0.950 kg), and compliance with IEC and EN safety standards. Dimensional data such as overall length (150.0 mm) and width (140.7 mm) are also provided. This manual is written in Chinese.
Philips LS-6 specifications
| Rated Voltage | 220‑240 V |
|---|---|
| Minimum Operating Voltage | 160 V |
| Maximum Operating Voltage | 2400 V |
| Frequency | 0.40 kHz |
| Lifetime (90% survival) | 80 000 h |
| Lifetime (95% survival) | 60 000 h |
| Length (A1) | 135.0 mm |
| Width (A2) | 1257 mm |
| Mounting Hole Diameter (D1) | 48 mm |
| EMI Frequency Range | 9 kHz – 300 MHz |
| Weight | 0.850 kg |
| EMC Standard | IEC 61000‑3‑2 |
| EMC Standard | IEC 68‑2‑6 |
All Philips LS-6 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the rated voltage of the HID‑DV LS‑6 Xt 60 /S CPO‑TW?
The lamp is rated for 220‑240 V operation.
What is the maximum operating voltage of the lamp?
The maximum operating voltage is 2400 V.
What is the rated voltage for the HID‑DV LS‑6 Xt 140?
The product is rated for 220‑240 V.
What safety standards are referenced in the manual?
The manual cites IEC 607, IEC 609, IEC 926, IEC 928, IEC 61000‑3‑2, IEC 68‑2‑6, IEC 68‑2‑29, EN 61347‑2‑12, ENEC and other standards.
What is the rated voltage for the HID‑DV LS‑6 Xt 90/S CPO‑TW?
The lamp is rated for 220‑240 V operation.
From: Philips HID-DV LS-6 Xt 90/S CPO-TW 220-240V LumiStep Super HID DynaVision Manual
What is the maximum current rating of the lamp?
The maximum current is 55 A.
From: Philips HID-DV LS-6 Xt 90/S CPO-TW 220-240V LumiStep Super HID DynaVision Manual
