Start here

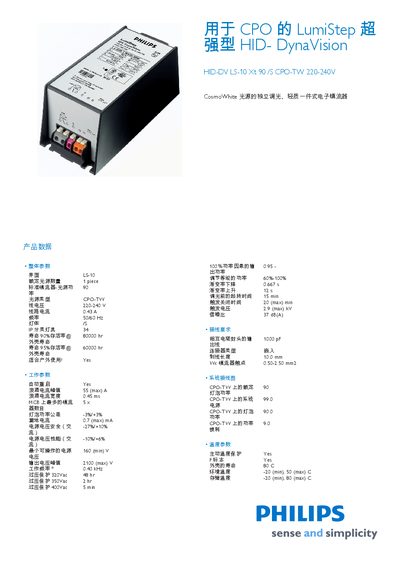

PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 90 /S CPO-TW 220-240V user manual
The manual describes the overall and operating parameters of the CPO LumiStep Super strong HID‑DynaVision lamp, including electrical ratings, lifetime, and safety standards. It also lists connection requirements, system wiring, and temperature limits for proper use.
Key physical data such as dimensions (A1 150.0 mm, A2 140.7 mm, B1 65.0 mm) and performance figures (55 A max current, 160 V min voltage, 2100 V max voltage, 0.40 kHz frequency) are provided, along with compliance to IEC and EN safety standards. This manual is written in Chinese.
Philips LS-10 specifications
| Maximum operating current | 55 A |
|---|---|
| Minimum operating voltage | 160 V |
| Maximum operating voltage | 2100 V |
| Rated lifetime | 80 000 h |
| Operating frequency | 0.40 kHz |
| Operating temperature range | -20 °C to 80 °C |
| Physical dimension A1 | 150.0 mm |
Source: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 90 /S CPO-TW 220-240V user manual
All Philips LS-10 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum operating current?
The maximum operating current is 55 A.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 90 /S CPO-TW 220-240V user manual
What is the rated lifetime of the lamp?
The lamp is rated for 80 000 hours of operation.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 90 /S CPO-TW 220-240V user manual
What is the rated voltage range for the HID‑DV LS-10 Xt 140?
The lamp operates from a minimum of 160 V up to a maximum of 2100 V.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 140 /S CPO-TW 220-240V Manual
What is the maximum current rating of the lamp?
The maximum allowable current is 56 A.
From: PHILIPS CPO LumiStep Super strong HID- DynaVision HID-DV LS-10 Xt 140 /S CPO-TW 220-240V Manual
