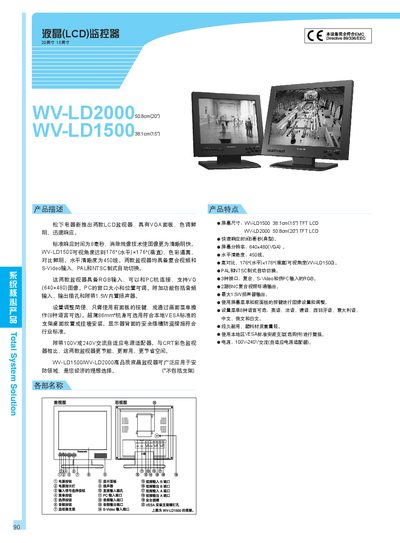

Panasonic WV-LD1500/WV-LD2000 LCD Monitor User Manual
The Panasonic WV-LD1500 and WV-LD2000 are 15‑inch and 20‑inch TFT LCD monitors with VGA resolution, fast 8 ms response time, and wide 176° viewing angles. They include composite, S‑Video and RGB inputs, built‑in 1.5 W speakers, and support both PAL and NTSC video standards.
This manual provides instructions for adjusting picture settings via front‑panel buttons or the on‑screen menu (available in eight languages), installing the monitors on a VESA‑compatible wall mount, and connecting audio/video sources. Technical specifications such as brightness, contrast, power consumption, and environmental limits are listed for reference. This manual is written in Chinese.
Panasonic WV-LD2000 specifications
| Screen size | 38.1 cm (15") for WV-LD1500, 50.8 cm (20") for WV-LD2000 |
|---|---|
| Resolution | 640 × 480 (VGA) |
| Horizontal resolution | 450 lines or more |
| Contrast ratio | 800:1 (typical) / 500:1 (typical) |
| Brightness | 400 cd/m² (typical) |
| Power consumption | 45 W (WV-LD1500), 52 W (WV-LD2000) |
| Video inputs | Composite, S‑Video, RGB (PC) |
| Speaker output | 1.5 W |
| VESA mounting | 100 mm screw spacing, VESA standard |
| Operating temperature | 0 °C – +40 °C |
| Weight (with stand) | 5.12 kg (WV-LD1500), 8.89 kg (WV-LD2000) |
Source: Panasonic WV-LD1500/WV-LD2000 LCD Monitor User Manual
All Panasonic WV-LD2000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What are the screen sizes of the WV-LD1500 and WV-LD2000 monitors?
The WV-LD1500 has a 38.1 cm (15 in) TFT LCD screen, while the WV-LD2000 has a 50.8 cm (20 in) TFT LCD screen.
Which video input connectors are available on these monitors?
They provide three video inputs: composite video, S‑Video, and an RGB input for PC connections.
