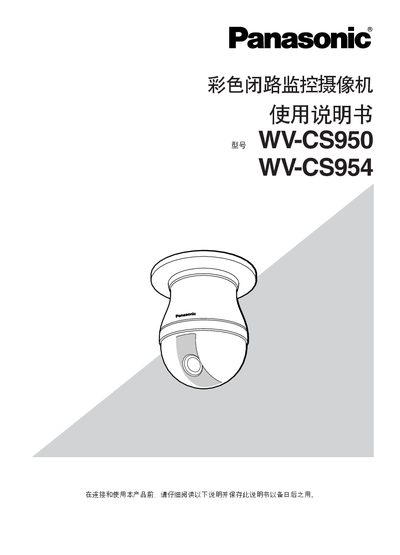

Panasonic WV-CS950 / WV-CS954 Color Closed‑Circuit Monitoring Camcorder User Manual
This manual covers safety precautions, wiring conventions, installation requirements and detailed operating procedures for the Panasonic WV‑CS950 and WV‑CS954 color closed‑circuit monitoring camcorders. It explains how to mount the camera, configure DIP switches, set up RS‑485 communication, and use features such as digital flip, privacy zones, patrol mode and motion detection.
Technical data such as power requirements, sensor specifications, zoom ratios, rotation ranges and preset position storage are listed, along with troubleshooting tips and maintenance advice. The document is written in Chinese and intended for qualified installers and end‑users.
Panasonic WV-CS950 specifications
| Model | WV‑CS950 (AC 220‑240V) / WV‑CS954 (AC 24V) |
|---|---|
| Horizontal Resolution (Color) | 540 lines |
| Horizontal Resolution (B&W) | 570 lines |
| Minimum Illumination (Color) | 0.5 Lux |
| Minimum Illumination (B&W) | 0.04 Lux |
| Optical Zoom | 30× |
| Rotation Range | 360° continuous |
| Preset Positions | 256 |
| Dimensions (W×H×D) | 154.5 mm × 233 mm |
| Weight | ≈22 kg |
| Operating Temperature | -10 °C to +50 °C |
Source: Panasonic WV-CS950 Series Security Camera User Manual
All Panasonic WV-CS950 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the minimum illumination required for color mode?
The camera needs at least 0.5 Lux in color mode.
How many preset positions does the camera support?
It supports 256 preset positions.
What power voltage does the WV‑CS950 require?
The WV‑CS950 operates on AC 220‑240 V, 50 Hz.
From: Panasonic WV-CS950 / WV-CS954 Color Closed‑Circuit Monitoring Camcorder User Manual
How many preset positions can be stored in the camera?
The camera can store up to 256 preset positions.
From: Panasonic WV-CS950 / WV-CS954 Color Closed‑Circuit Monitoring Camcorder User Manual
