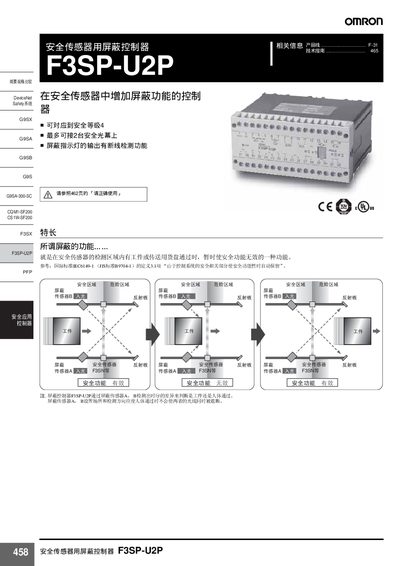

Omron F3SP-U2P Security Sensor Shield Controller Manual
This manual describes the function and safety features of the Omron F3SP-U2P security sensor shield controller, including how it interfaces with safety light curtains and door sensors. It also outlines compliance with relevant safety standards.
The document lists technical specifications, wiring diagrams, connection limits, power requirements, and physical dimensions, and provides precautions for proper installation and use. This manual is written in Japanese.
Omron F3SP-U2P specifications
| Rated Voltage | DC24V |
|---|---|
| Maximum Connected Light Curtains | 2 |
| Maximum Connected Door Sensors | 4 |
| Power Consumption (excluding indicator lamps) | Below SW |
| Response Time (G9S) | 30 ms or less |
| Weight | 870 g |
| Physical Size (mm) | 120 mm (width) |
Source: Omron F3SP-U2P Security Sensor Shield Controller Manual
