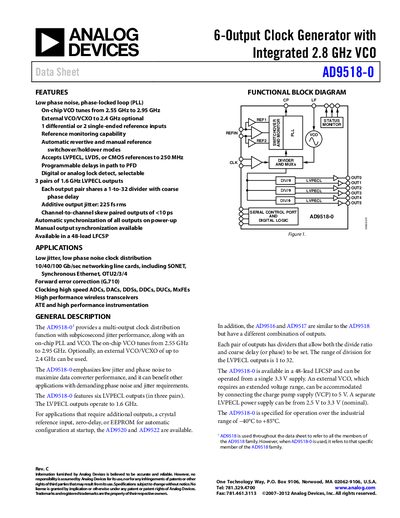

Analog Devices AD9518-0 Clock Generator Datasheet
The AD9518-0 provides multi‑output clock distribution with sub‑picosecond jitter performance. It features an on‑chip PLL and VCO that tunes from 2.55 GHz to 2.95 GHz, six LVPECL outputs (three differential pairs) up to 1.6 GHz, and programmable delays and lock‑detect options. The device operates from a single 3.3 V supply and can accept LVPECL, LVDS or CMOS reference inputs up to 250 MHz.
Typical applications include high‑speed networking line cards, high‑performance ADC/DAC clocking, wireless transceivers, and test instrumentation. The part is specified for industrial temperature range (‑40 °C to +85 °C) and is available in a 48‑lead LFCSP package.
Analog Devices AD9518-0 specifications
| VCO Frequency Range | 2.55 GHz – 2.95 GHz |
|---|---|
| Maximum LVPECL Output Frequency | 2.95 GHz |
| Additive Output Jitter | 225 fs rms |
| Channel‑to‑Channel Skew (paired outputs) | <10 ps |
| Supply Voltage (Vs) Typical | 3.3 V |
| Reference Input Frequency Range | 0 – 250 MHz |
| Phase Noise at 100 kHz Offset | ‑105 dBc/Hz |
| Operating Temperature Range | ‑40 °C to +85 °C |
All Analog Devices AD9518-0 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the VCO frequency range of the AD9518-0?
The on‑chip VCO tunes from 2.55 GHz to 2.95 GHz.
What is the maximum output frequency of the LVPECL outputs?
The LVPECL outputs can reach up to 2.95 GHz.
