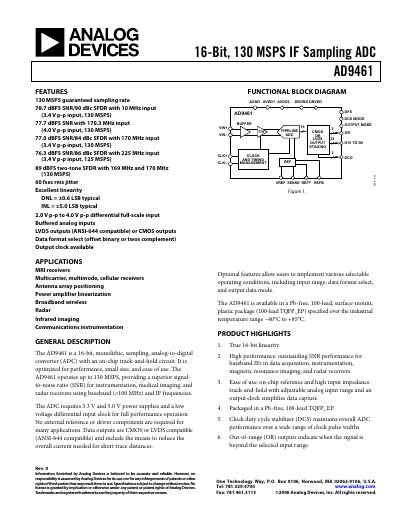

Analog Devices AD9461 16‑Bit 130 MSPS IF Sampling ADC Datasheet
The AD9461 from Analog Devices is a monolithic 16‑bit analog‑to‑digital converter optimized for high‑speed intermediate‑frequency (IF) sampling up to 130 MSPS. It features on‑chip track‑and‑hold, selectable LVDS or CMOS outputs, and a built‑in reference, making it suitable for MRI, radar, broadband wireless and other high‑performance instrumentation.
The device operates from 3.3 V (AVDD1) and 5.0 V (AVDD2) supplies, offers a differential input range of 3.4 V p‑p, and provides low jitter (60 fsec rms) and excellent linearity (DNL ±0.6 LSB, INL ±5 LSB). It is supplied in a Pb‑free 100‑lead TQFP_EP package rated for –40 °C to +85 °C.
Analog Devices AD9461 specifications
| Resolution | 16 Bits |
|---|---|
| Maximum Sampling Rate | 130 MSPS |
| Power Consumption (LVDS) | 2.2 W |
| Supply Voltage AVDD1 | 3.3 V (±5%) |
| Supply Voltage AVDD2 | 5.0 V (±5%) |
| Input Span | 3.4 V p‑p differential |
| Signal‑to‑Noise Ratio (10 MHz input) | 78.7 dBFS |
| Effective Number of Bits (10 MHz input) | 12.5 Bits |
| Aperture Jitter | 60 fsec rms |
| Package | 100‑lead TQFP_EP |
Source: Analog Devices AD9461 16‑Bit 130 MSPS IF Sampling ADC Datasheet
All Analog Devices AD9461 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum sampling rate of the AD9461?
The AD9461 can sample at up to 130 MSPS.
From: Analog Devices AD9461 16‑Bit 130 MSPS IF Sampling ADC Datasheet
What supply voltages does the AD9461 require?
It requires AVDD1 = 3.3 V, AVDD2 = 5.0 V, and DRVDD = 3.3 V for full performance.
From: Analog Devices AD9461 16‑Bit 130 MSPS IF Sampling ADC Datasheet
