AD9461 is a 16-bit, 130 MSPS IF sampling ADC with excellent linearity and jitter performance.
The AD9461 is a 16‑bit, 130 MSPS sampling ADC optimized for high‑performance instrumentation, medical imaging, and radar applications. It features a monolithic track‑and‑hold circuit, selectable LVDS or CMOS outputs, and on‑chip reference, requiring only 3.3 V and 5.0 V supplies.

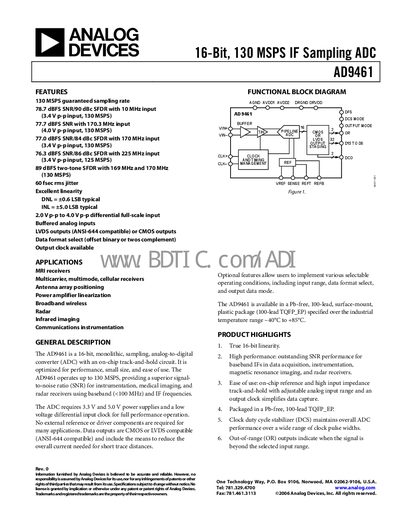

The datasheet provides full electrical specifications, timing diagrams, absolute maximum ratings, pin configurations for the 100‑lead TQFP_EP package, and ordering information, allowing designers to integrate the converter into high‑speed data‑acquisition systems.
| Resolution | Full 16 Bits |
|---|---|
| Maximum Sampling Rate | 130 MSPS |
| Differential Input Range | 2.0 V p‑p to 4.0 V p‑p |
| Power Supply Voltages | AVDD1 3.3 V, AVDD2 5.0 V, DRVDD 3.3 V |
| Effective Number of Bits (10 MHz) | 12.5 Bits |
| Thermal Resistance (heat‑sink soldered) | 19.8 °C/W |
The AD9461 can operate up to 130 MSPS.
It requires AVDD1 = 3.3 V, AVDD2 = 5.0 V, and DRVDD = 3.3 V.
The device provides either LVDS (ANSI‑644 compatible) or CMOS outputs.
The full‑scale differential input range is 2.0 V p‑p to 4.0 V p‑p.
