Start here

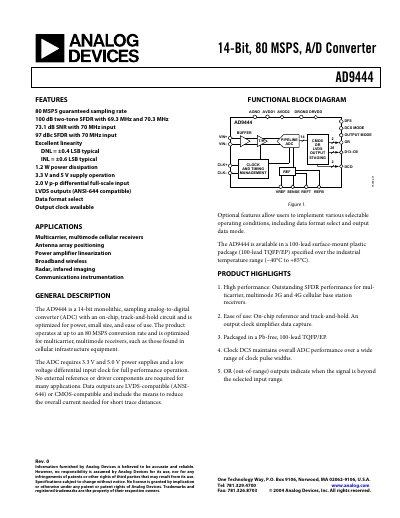

Analog Devices AD9444 14‑Bit 80 MSPS ADC Datasheet Rev 0
The AD9444 is a 14‑bit monolithic sampling ADC optimized for low power, small size, and ease of use. It operates up to 80 MSPS and supports both LVDS‑compatible (ANSI‑644) and CMOS output formats. The device requires 3.3 V and 5.0 V supplies and a low‑voltage‑differential input clock.
The datasheet provides detailed electrical specifications, pin configurations, timing diagrams, and evaluation board schematics. It also includes absolute maximum ratings, thermal information, and ordering details for the 100‑lead TQFP/EP package.
Analog Devices AD9444 specifications
| Resolution | 14 bits |
|---|---|
| Maximum Sampling Rate | 80 MSPS |
| Supply Voltage AVDD1 | 3.3 V |
| Supply Voltage AVDD2 | 5.0 V |
| Power Consumption (LVDS output) | 1.21 W typical |
| Differential Input Range | 2 V p‑p |
| Differential Nonlinearity (DNL) | ±0.4 LSB |
| Integral Nonlinearity (INL) | ±0.6 LSB |
| Signal‑to‑Noise Ratio (10 MHz) | ≈73 dB |
| Spurious‑Free Dynamic Range (10 MHz) | ≈97 dBc |
| Effective Number of Bits (10 MHz) | 12.1 bits |
Source: Analog Devices AD9444 14‑Bit 80 MSPS ADC Datasheet Rev 0
All Analog Devices AD9444 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion (sampling) rate of the AD9444?
The AD9444 can sample at up to 80 MSPS.
From: Analog Devices AD9444 14‑Bit 80 MSPS ADC Datasheet Rev 0
Which supply voltages are required for the AD9444?
The device uses 3.3 V for AVDD1 and 5.0 V for AVDD2.
From: Analog Devices AD9444 14‑Bit 80 MSPS ADC Datasheet Rev 0
What supply voltages does the AD9444 require?
The AD9444 requires a 3.3 V supply (AVDD1) and a 5.0 V supply (AVDD2).
What is the maximum conversion rate of the AD9444?
The device can operate at up to 80 MSPS conversion rate.
