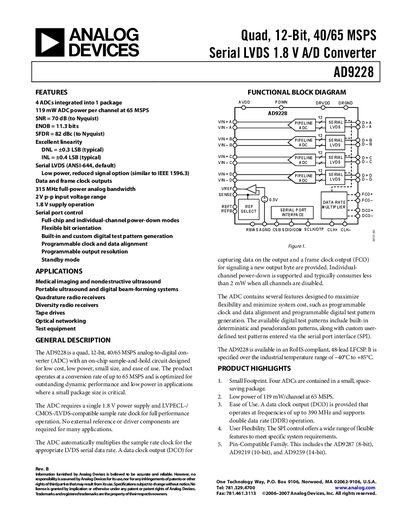

AD9228 is a Quad, 12-Bit, 40/65 MSPS Serial LVDS 1.8 V A/D Converter with 4 ADCs integrated into 1 package. It has low power consumption, excellent linearity, and high signal-to-noise ratio.
The AD9228 is a quad, 12‑bit analog‑to‑digital converter designed for applications such as medical imaging, portable ultrasound, quadrature radio receivers, tape drives, and optical networking. It operates from a single 1.8 V supply and provides LVDS, CMOS, or LVPECL‑compatible serial outputs, eliminating the need for external reference or driver components.
Key features include four integrated ADCs in a 48‑lead LFCSP package, 119 mW per channel at 65 MSPS, SNR of 70 dB, ENOB of 11.3 bits, and programmable clock/data alignment with built‑in digital test pattern generation. The device supports individual channel power‑down, standby mode, and offers a data clock output up to 390 MHz for DDR operation.
| Resolution | 12 bits |
|---|---|
| Maximum Sample Rate | 65 MSPS |
| Power Consumption per Channel | 119 mW @ 65 MSPS |
| Signal‑to‑Noise Ratio (SNR) | 70 dB |
| Effective Number of Bits (ENOB) | 11.3 bits |
| Input Voltage Range | 2 V p‑p differential |
| Supply Voltage | 1.8 V (AVDD, DRVDD) |
| Package | 48‑lead LFCSP (CP‑48‑1) |
| Operating Temperature Range | -40 °C to +85 °C |
The AD9228 can operate at up to 65 MSPS.
It requires a single 1.8 V supply for both AVDD and DRVDD.
Four ADCs are integrated into one package.
Typical power consumption is 119 mW per channel.
