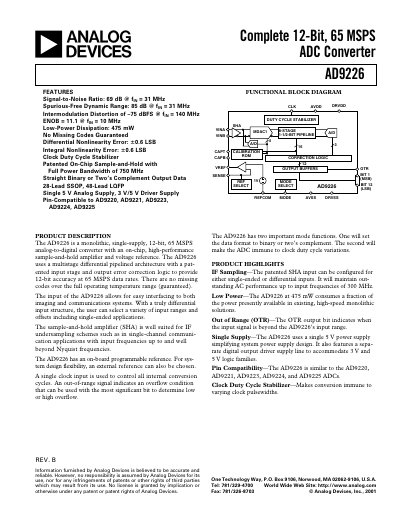

Analog Devices AD9226 12‑Bit 65 MSPS ADC Converter Datasheet
The AD9226 is a monolithic, single‑supply, 12‑bit ADC capable of 65 MSPS conversion rates. It features an on‑chip sample‑and‑hold amplifier, programmable reference, and a patented input stage that guarantees no missing codes across the full temperature range.
The device operates from a 5 V analog supply and a 3 V digital driver supply, consuming only 475 mW. It offers both binary and two’s‑complement output formats, an out‑of‑range indicator, and clock‑duty‑cycle stabilization for robust performance in imaging and communications applications.
Analog Devices AD9226 specifications
| Resolution | 12 Bits |
|---|---|
| Maximum Sample Rate | 65 MSPS |
| No Missing Codes | Guaranteed |
| Signal‑to‑Noise Ratio (31 MHz input) | 69 dB |
| Effective Number of Bits (10 MHz input) | 11.1 bits |
Source: Analog Devices AD9226 12‑Bit 65 MSPS ADC Converter Datasheet
All Analog Devices AD9226 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum conversion rate of the AD9226?
The AD9226 can convert at up to 65 MSPS.
From: Analog Devices AD9226 12‑Bit 65 MSPS ADC Converter Datasheet
Does the AD9226 guarantee no missing codes?
Yes, the device guarantees no missing codes across its full operating range.
From: Analog Devices AD9226 12‑Bit 65 MSPS ADC Converter Datasheet
What is the power consumption of the AD9226?
The AD9226 consumes 475 mW of power.
Does the AD9226 guarantee no missing codes?
Yes, the device guarantees no missing codes over the full operating temperature range.
