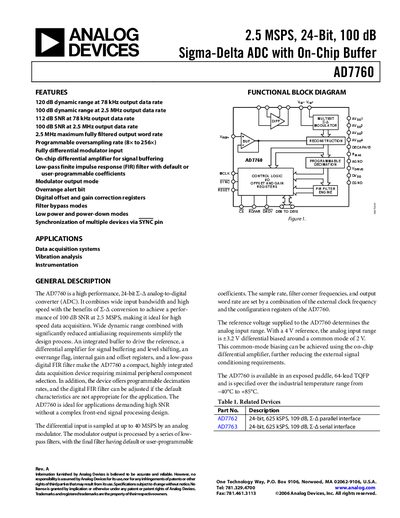

Analog Devices AD7760 Datasheet
The AD7760 is a high‑performance 24‑bit sigma‑delta analog‑to‑digital converter designed for high‑speed data‑acquisition applications. It provides a maximum fully filtered output word rate of 2.5 MHz, dynamic range up to 120 dB, and programmable oversampling ratios from 8× to 256×. Integrated features include a differential input buffer, on‑chip FIR filter, over‑range flag, and digital offset/gain correction.
Typical applications include data acquisition systems, vibration analysis and instrumentation. The device is offered in an exposed‑paddle and a 64‑lead thin‑quad flat package (TQFP_EP) and operates over a commercial temperature range of –40 °C to +85 °C.
Analog Devices AD7760 specifications
| Dynamic Range (78 kHz ODR) | 120 dB |
|---|---|
| Signal‑to‑Noise Ratio (2.5 MHz ODR) | 100 dB |
| Resolution | 24 bits |
| Total Power Dissipation (Normal mode) | 958 mW max |
| Operating Temperature Range | –40 °C to +85 °C |
| Package | 64‑Lead Thin Quad Flat Package, Exposed Pad (TQFP_EP) |
Source: Analog Devices AD7760 Datasheet
All Analog Devices AD7760 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum output data rate of the AD7760?
The AD7760 can output data at up to 2.5 MHz (2.5 MSPS).
How can the oversampling rate be programmed?
The device supports programmable oversampling ratios from 8× to 256×.
What is the dynamic range of the AD7760 at a 78 kHz output data rate?
The AD7760 provides a dynamic range of 120 dB at a 78 kHz output data rate.
How much power does the AD7760 consume in normal mode?
In normal mode the AD7760 dissipates up to 958 mW of power.
