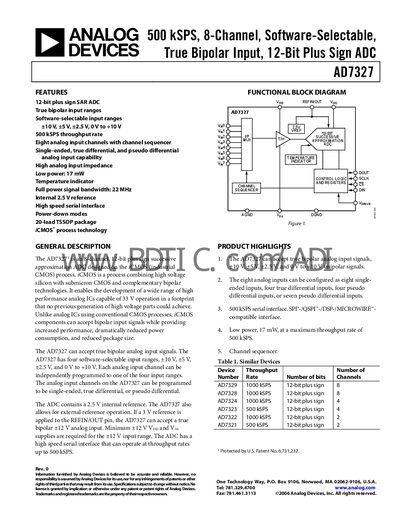

This document describes the AD7327 model from Analog Devices, which is a 500 kSPS, 8-channel, software-selectable, true bipolar input, 12-bit plus sign ADC. It features true bipolar input ranges, software-selectable input ranges, 500 kSPS throughput rate, eight analog input channels, high-speed serial interface, etc.
The AD7327 from Analog Devices is a 12‑bit plus‑sign successive‑approximation ADC offering true bipolar input ranges and software‑selectable voltage ranges (+10 V, +5 V, +2.5 V, 0‑10 V). It supports eight analog input channels that can be configured as single‑ended, true differential, or pseudo‑differential, and provides a high‑speed serial interface up to 500 kSPS.
The device is supplied in a 20‑lead TSSOP package, operates from a 12‑16.5 V supply, and features low power consumption (17 mW at maximum throughput). Detailed specifications include resolution, dynamic performance, timing parameters, absolute maximum ratings, and power‑down modes.
| Resolution | 13 bits |
|---|---|
| Throughput Rate | 500 kSPS |
| Full Power Bandwidth | 22 MHz |
| Power Consumption (Normal Mode) | 0.9 mA |
| Input Voltage Range (Bipolar) | +10 V, +5 V, +2.5 V, 0‑10 V |
| Number of Analog Input Channels | 8 |
The AD7327 can operate at a throughput rate of up to 500 kSPS.
The device provides eight analog input channels.
The AD7327 consumes about 17 mW at the maximum 500 kSPS throughput.
The AD7327 is offered in a 20‑lead TSSOP (RU‑20) package.
