Key facts
- Brand
- Siemens
- Model
- SQX82
- Industry
- Industrial
- Documents
- 5
- Languages
- ZH
- Last added
- 2012-02-24
Start here

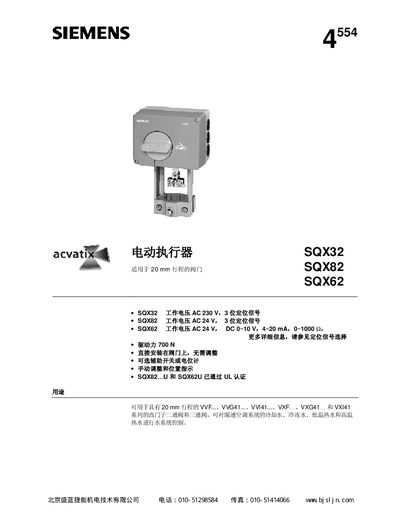

Siemens SQX32/82/62 Electric Actuator Manual
This manual describes the electric actuators SQX32, SQX82 and SQX62, which are used for HVAC valve control in two‑way and three‑way valve families (VVF, VVG, VVI, VXF, VXG, VXI). It explains the applicable voltage options, positioning signals, drive force and optional accessories such as auxiliary switches and heating elements.
The document includes model overviews, mechanical design details, installation instructions, wiring diagrams, calibration procedures, safety warnings, technical parameters, and a parts list. It also provides guidance for maintenance, repair, and compliance with relevant standards (CE, UL, EN). This manual is written in Chinese.
Siemens SQX82 specifications
| Operating Voltage (SQX32) | AC 230 V |
|---|---|
| Operating Voltage (SQX82 / SQX62) | AC 24 V |
| Drive Force | 700 N |
| Rated Stroke | 20 mm |
| Power Consumption (SQX32.00) | 3.5 VA |
| Power Consumption (SQX32.03) | 6.5 VA |
All Siemens SQX82 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Disassembly, diagnostics and part numbers, for repair.
Questions answered in these manuals
What is the rated stroke of the SQX actuators?
The rated stroke is 20 mm.
How much drive force can the SQX series provide?
The actuators can deliver a drive force of 700 N.
How do I calibrate the travel of the actuator?
Connect the AC 24 V power, press the S3 button, the actuator moves to the 0 % position (LED flashes), then to 100 % (LED flashes) and stores the values in the micro‑processor.
From: Siemens SQX32/SQX82/SQX62 Electric Valve Actuator Execution Manual
Which models are UL certified?
The SQX82…U and SQX62U versions are UL certified.
From: Siemens SQX32/SQX82/SQX62 Electric Valve Actuator Execution Manual
How do I calibrate the stroke of an SQX62 actuator?
Connect AC 24 V power, press the S3 button, move the actuator to the 0 % (closed) position until the green LED flashes, then to the 100 % (open) position until the LED flashes again; the values are stored in the micro‑processor.
From: Siemens SQX32, SQX82, SQX62 Electric Valve Actuator Service Manual
What is the maximum force the SQX series actuators can deliver?
The actuators can provide up to 700 N of force.
From: Siemens SQX32, SQX82, SQX62 Electric Valve Actuator Service Manual
